Festo
5273329

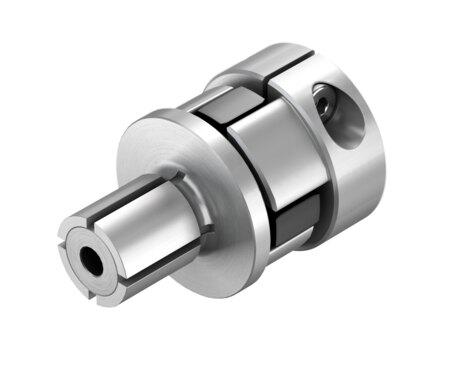

Coupling EAMD-32-32-10-16X20-U
The Festo industrial component, part number 5273329, features a holder 1 diameter of 10 mm and a holder 2 diameter of 16 mm with a size 32 designation and a nominal length of 32 mm. This RoHS compliant unit supports any mounting position, a maximum rotational speed of 8000 rpm, a transferable torque of 16 Nm, and a mass moment of inertia of 14.5 kgmm² while weighing 126 g. It complies with VDMA24364-B2-L LABS conformity and operates within ambient and storage temperature ranges of -25 °C to 60 °C at a relative air humidity of 0 to 95%. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 5273329
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 5273329.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diameter of holder 1
- 10 mm
- Diameter of holder 2
- 16 mm
- Size
- 32
- Nominal length
- 32 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Ambient temperature
- -25 °C...60 °C
- Mass moment of inertia
- 14.5 kgmm²
- Transferable torque
- 16 Nm
- Product weight
- 126 g
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 5273329. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
