Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

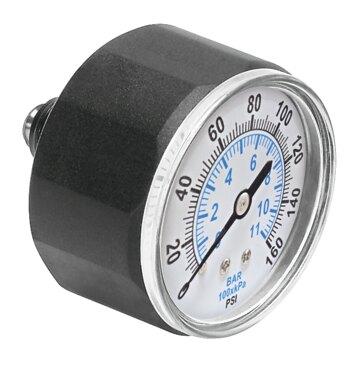

Reference imageConfirm configuration by manufacturer part number.
Festo
527405
Pressure gauge MA-27-160-M5-PSI
The Festo part number 527405 is a structural Bourdon tube pressure gauge featuring a nominal size of 27 and a display range of 0 psi to 160 psi, configured for in-line installation with a centered rear M5 pneumatic connection. Constructed with a PA housing and brass media-contacting components and screwed plug, this unit operates within a medium and ambient temperature range of 0 °C to 60 °C for inert gases and neutral liquids up to 1.1 MPa, excluding acetylene and oxygen. It complies with VDMA24364-B1/B2-L LABS conformity and RoHS material notes, provides an IP43 degree of protection, achieves measurement accuracy class 4 with an intermittent load factor of 0.66, and supports ATEX explosion prevention for Zones 1, 2, 21, and 22 according to certificate details. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this industrial component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 527405
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 527405.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Display range
- 0 psi...160 psi
- Pressure gauge nominal size
- 27
- Explosion prevention and protection
- Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Structural design
- Bourdon tube pressure gauge
- Type of mounting
- In-line installation
- Operating medium
- Inert gases | Neutral liquids
- Information on operating and pilot media
- No acetylene | No oxygen
- Operating pressure
- 0 MPa...1.1 MPa | 0 bar...11 bar | 0 psi...159.5 psi
- Intermittent load factor
- 0.66
- Measurement accuracy class
- 4
- Degree of protection
- IP43
- Temperature of medium
- 0 °C...60 °C
- Ambient temperature
- 0 °C...60 °C
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Note on materials
- RoHS compliant
- Connection position
- Centered on rear side
- Pneumatic connection
- M5
- Materials in contact with the media
- Brass
- Material of screwed plug
- Brass
- Housing material
- PA
- Inspection window material
- PS
- Housing colour
- Black
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 527405. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
