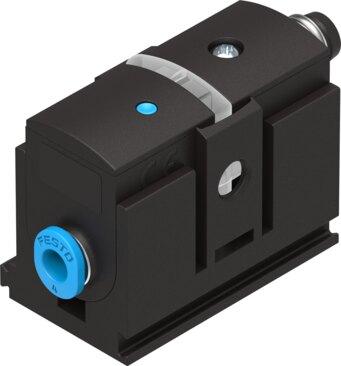

Reference imageConfirm configuration by manufacturer part number.
Festo
527460
Pressure sensor SDE5-V1-O-Q4E-P-M8
The Festo 527460 is a piezoresistive pressure sensor engineered to measure relative pressure across a range of 0 bar to -1 bar using compressed air as per ISO 8573-1:2010 [7:4:4]. It features a PNP switching output with a threshold value, fixed hysteresis, N.O. contact function, short-circuit protection, and a max output current of 100 mA within a 15 V to 30 V DC operating voltage range. Certified with RCM compliance and c UL us recognition, the unit operates within a medium and ambient temperature range of 0 °C to 50 °C with a repetition accuracy of 0.3 %FS. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 527460
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 527460.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Note on materials
- RoHS compliant
- Measured variable
- Relative pressure
- Method of measurement
- Piezoresistive pressure sensor
- Pressure measuring range initial value
- 0 bar
- Pressure measuring range end value
- -1 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Lubricated operation possible
- Temperature of medium
- 0 °C...50 °C
- Ambient temperature
- 0 °C...50 °C
- Repetition accuracy in ± %FS
- 0.3 %FS
- Temperature co-efficient in ± %FS/K
- 0.05 %FS/K
- Switching output
- PNP
- Switching function
- Threshold value with xed hysteresis
- Switching element function
- N.O. contact
- Max. output current
- 100 mA
- Short-circuit protection
- Yes
- DC operating voltage range
- 15 V...30 V
- Reverse polarity protection
- for all electrical connections
- Electrical connection
- 3-pin | M8x1 | Plug | As per EN 60947-5-2 | Round design
- Type of mounting
- With accessories
- Mounting position
- Any
- Pneumatic connection
- QS-4
- Product weight
- 19 g
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 527460. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
