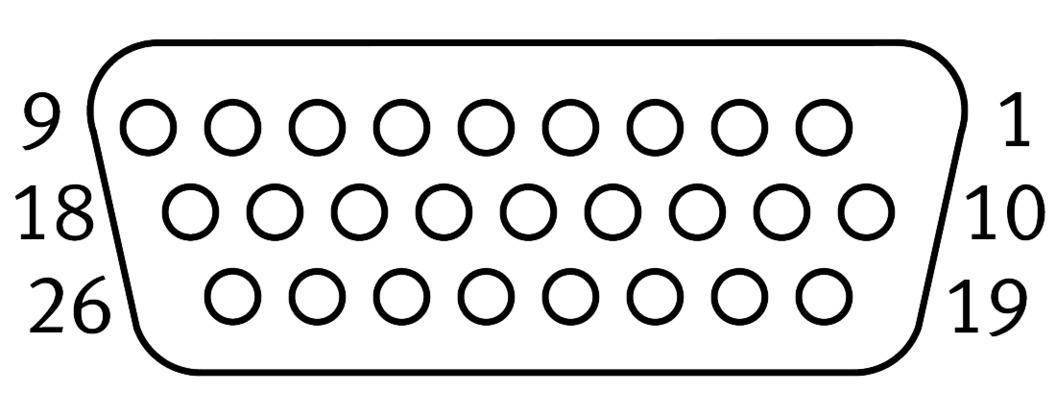

Reference imageConfirm configuration by manufacturer part number.
Festo
527546
Connecting cable KMP6-26P-16-2,5
The Festo 527546 is an industrial component weighing 280 g that conforms to DIN 41652 and operates within a DC voltage range of 0 V to 30 V, featuring a nominal operating voltage of 24 V DC and a current rating of 2.8 A at 40° C. Electrical connection 1 on the field device side utilizes a straight Sub-D socket design with 26 pins, 20 occupied pins, a square connection technology, 2x 4-40 UNC screw mounting, and no label holder on the cable designation. Electrical connection 2 on the control side consists of an open-end cable with 20 pins and 20 occupied pins, offering a contact durability rating of 50. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 527546
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 527546.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- DIN 41652
- Cable designation
- Without label holder
- Contact durability
- 50
- Product weight
- 280 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- Sub-D
- Electrical connection 1, number of pins/wires
- 26
- Electrical connection 1, occupied pins/wires
- 20
- Electrical connection 1, type of mounting
- 2x 4-40 UNC screw
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 20
- Electrical connection 2, occupied pins/wires
- 20
- DC operating voltage range
- 0 V...30 V
- Nominal operating voltage DC
- 24 V
- Current rating at 40° C
- 2.8 A
- Surge resistance
- 1 kV
- Cable length
- 2.5 m
- Cable characteristic
- Standard
- Connector cable test conditions
- Test conditions on request
- Bending radius, xed cable installation
- 88 mm
- Bending radius, exible cable installation
- 132 mm
- Cable diameter
- 8.8 mm
- Cable diameter tolerance
- ± 0.25 mm
- Cable design
- 20 x 0.25 mm²
- Nominal conductor cross section
- 0.25 mm²
- Wire ends
- Cut off bluntly
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 527546. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
