Festo
527547
Connecting cable KMP6-26P-16-5

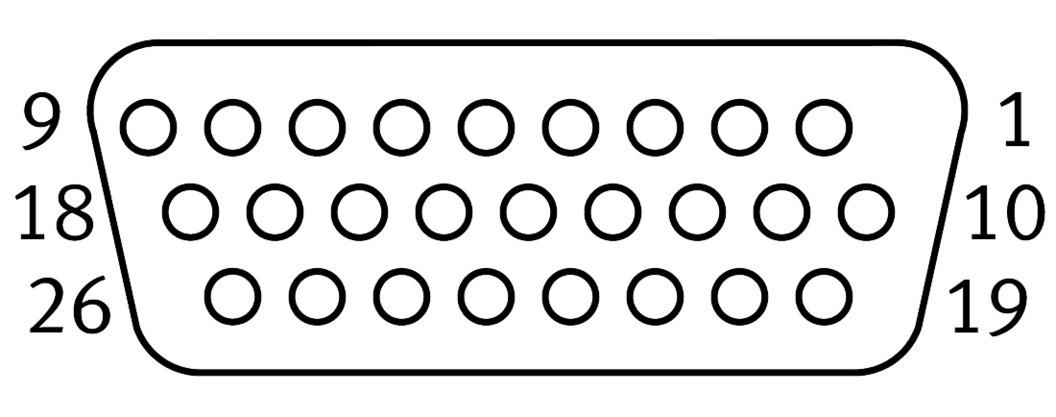

The Festo 527547 is an industrial component featuring a 26-pin Sub-D socket with a straight cable outlet on the field device side and an open-ended cable on the control side, conforming to DIN 41652. This assembly weighs 570 g, accommodates 20 occupied pins and wires on both connections, and utilizes a 2x 4-40 UNC screw mounting type. Operating within a DC voltage range of 0 V to 30 V with a 24 V nominal operating voltage, the unit supports a current rating of 2.8 A at 40° C and exhibits a contact durability of 50 without a label holder. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 527547
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 527547.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- DIN 41652
- Cable designation
- Without label holder
- Contact durability
- 50
- Product weight
- 570 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- Sub-D
- Electrical connection 1, number of pins/wires
- 26
- Electrical connection 1, occupied pins/wires
- 20
- Electrical connection 1, type of mounting
- 2x 4-40 UNC screw
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 20
- Electrical connection 2, occupied pins/wires
- 20
- DC operating voltage range
- 0 V...30 V
- Nominal operating voltage DC
- 24 V
- Current rating at 40° C
- 2.8 A
- Surge resistance
- 1 kV
- Cable length
- 5 m
- Cable characteristic
- Standard
- Connector cable test conditions
- Test conditions on request
- Bending radius, xed cable installation
- 88 mm
- Bending radius, exible cable installation
- 132 mm
- Cable diameter
- 8.8 mm
- Cable diameter tolerance
- ± 0.25 mm
- Cable design
- 20 x 0.25 mm²
- Nominal conductor cross section
- 0.25 mm²
- Wire ends
- Cut off bluntly
