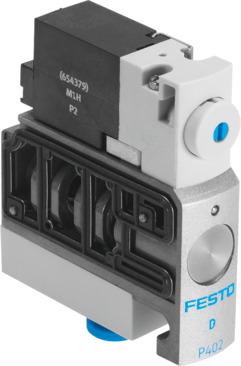

Reference imageConfirm configuration by manufacturer part number.
Festo
527554
Air solenoid valve CPVSC1-M1H-D-P-M5C
The Festo 527554 is an electrical 2/2-way closed monostable industrial component featuring a 10 mm valve size, a piston gate valve structural design, and a soft sealing principle. It delivers a normal nominal flow rate of 150 l/min through an M5 pneumatic working port, operating at pressures from -0.9 bar to 7 bar with an external pilot air supply ranging between 3 bar and 7 bar. This unit includes a pneumatic spring reset, positive overlap lap, non-reversible flow direction, and both detenting and non-detenting manual override capabilities while maintaining an IP40 degree of protection on 22V DC operating voltage. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 527554
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 527554.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2/2-way, closed, monostable
- Actuation type
- Electrical
- Valve size
- 10 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 150 l/min
- Pneumatic working port
- M5
- Operating voltage
- 22V DC
- Operating pressure
- -0.09 MPa...0.7 MPa | -0.9 bar...7 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Degree of protection
- IP40
- Exhaust air function
- Cannot be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.3 MPa...0.7 MPa
- Pilot pressure
- 3 bar...7 bar
- Switching time off
- 10 ms
- On switching time
- 10 ms
- Max. positive test pulse with 0 signal
- 400 µs
- Max. negative test pulse on 1 signal
- 200 µs
- Coil characteristics
- 22 V DC: 1.0 W
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
