Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas+1 417 261 6001 info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
527663

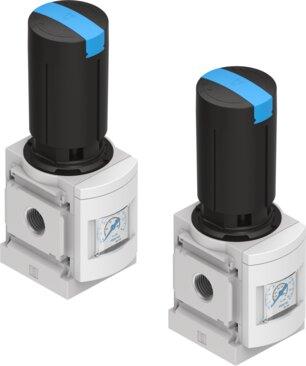

Pressure regulator MS6-LR
Festo Pressure regulator MS6-LR, part number 527663, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 527663
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 527663.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Size
- 6
- Series
- MS
- Actuator lock
- Rotary knob with detent | Rotary knob with integrated lock | can be closed with accessories
- Mounting position
- Any
- Structural design
- Pressure regulator with pressure gauge | Pressure regulator without pressure gauge
- Controller function
- Constant output pressure | With primary pressure compensation | With secondary exhausting
- Pressure gauge
- Set up for G1/4 | Set up for G1/8 | With pressure sensor | with pressure gauge | With pressure gauge in the rotary knob
- Operating pressure
- 0.8 bar...20 bar
- Pressure regulation range
- 0.3 bar...16 bar
- Max. pressure hysteresis
- 0.25 bar
- Normal nominal ow rate (normalized to DIN 1343)
- 2200 l/min...7500 l/min
- Certication
- c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- Explosion protection certication outside the EU
- EPL Db (GB) | EPL Gb (GB)
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 21 (UKEX) | Zone 22 (ATEX)
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
- Type of ignition protection for gas
- Ex h IIC T6 Gb X
- Type of (ignition) protection for dust
- Ex h IIIC T60°C Db X
- Explosive ambient temperature
- -10°C <= Ta <= +60°C
Technical library
Documents and Data Sheets
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 527663. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
