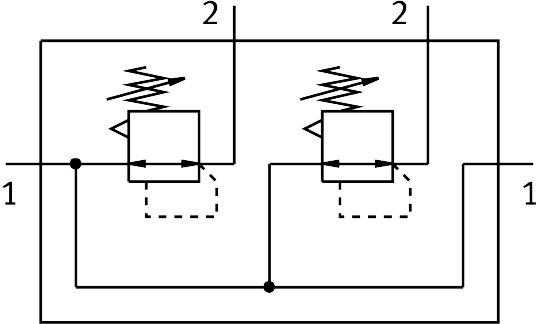

Name: Festo 528955 Pressure regulator manifold LRB-3/8-D-O-K2-MINI
Brand: Festo

Pressure regulator manifold LRB-3/8-D-O-K2-MINI

The Festo part number 528955 is a mini D-series directly controlled diaphragm regulator featuring a continuous compressed air supply, a rotary knob with detent for actuator locking, and set up for a G1/8 pressure gauge. It operates within a pressure range of 0.1 MPa to 1.6 MPa, providing a regulated pressure span of 0.05 MPa to 1.2 MPa with a normal nominal flow rate of 1600 l/min and a maximum pressure hysteresis of 0.02 MPa. This component functions with primary pressure compensation and secondary exhausting for compressed air media conforming to ISO 8573-1:2010 [7:4:4] across a medium and ambient temperature range of -10 °C to 60 °C. Weighing 760 g with VDMA24364-B1/B2-L LABS conformity, it supports any mounting position using appropriate accessories. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 528955
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 528955.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: Mini
Series: D
Actuator lock: Rotary knob with detent
Mounting position: Any
Structural design: Directly controlled diaphragm regulator | with continuous compressed air supply
Controller function: Constant output pressure | With primary pressure compensation | With secondary exhausting
Pressure gauge: Set up for G1/8
Operating pressure: 0.1 MPa...1.6 MPa | 1 bar...16 bar
Pressure regulation range MPa: 0.05 MPa...1.2 MPa
Pressure regulation range: 0.5 bar...12 bar
Pressure regulation range psi: 7.25 psi...174 psi
Max. pressure hysteresis: 0.02 MPa | 0.2 bar | 2.9 psi
Normal nominal ow rate (normalized to DIN 1343): 1600 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Air quality class at the output: Compressed air as per ISO 8573-1:2010 [7:4:4]
Temperature of medium: -10 °C...60 °C
Ambient temperature: -10 °C...60 °C
Product weight: 760 g
Type of mounting: With accessories
Pneumatic connection 1: G3/8
Pneumatic connection 2: G1/4
Material of sub-base: Die-cast zinc
Material of operator panel: PA
Seals material: NBR
Housing material: Die-cast zinc
