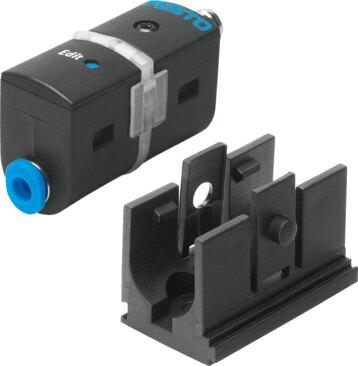

Reference imageConfirm configuration by manufacturer part number.
Festo
529027
Pressure sensor SDE5-
The Festo part number 529027 is an industrial component utilizing a piezoresistive pressure sensor to measure differential and relative pressure within a measuring range from -1 bar to 10 bar. It operates with compressed air per ISO 8573-1:2010 [7:4:4] at medium and ambient temperatures ranging from 0 °C to 50 °C, featuring a repetition accuracy of 0.3 %FS and a temperature coefficient of 0.05 %FS/K. This RoHS-compliant unit includes NPN and PNP switching outputs, a 0 - 10 V analog output, and carries RCM, c UL us, CE, and UKCA compliance markings. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 529027
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 529027.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Note on materials
- RoHS compliant
- Measured variable
- Differential pressure | Relative pressure
- Method of measurement
- Piezoresistive pressure sensor
- Pressure measuring range initial value
- -1 bar
- Pressure measuring range end value
- 10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Lubricated operation possible
- Temperature of medium
- 0 °C...50 °C
- Ambient temperature
- 0 °C...50 °C
- Repetition accuracy in ± %FS
- 0.3 %FS
- Temperature co-efficient in ± %FS/K
- 0.05 %FS/K
- Switching output
- NPN | PNP
- Switching function
- Window comparator | Freely programmable | Threshold value with xed hysteresis | Threshold value with variable hysteresis
- Switching element function
- NC contact | N.O. contact | Switchable
- Max. output current
- 100 mA
- Analog output
- 0 - 10 V
- Output characteristic curve initial value
- 0 V
- End value output characteristic curve
- 10 V
- Precision analog output in ± %FS
- 3 %FS
- Linearity error in ± % FS
- 0.3 %FS
- Short-circuit protection
- Yes
