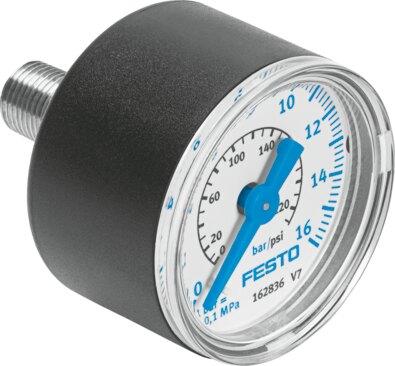

Reference imageConfirm configuration by manufacturer part number.
Festo
529046
Pressure gauge MA-40-16-1/8-EN-DPA
The Festo 529046 is a Bourdon tube pressure gauge with a nominal size of 40 and an in-line installation design featuring a centered rear R1/8 pneumatic connection. It provides a display and operating pressure range of 0 bar to 16 bar (0 psi to 232 psi) conforming to EN 837-1 with a measurement accuracy class of 2.5, utilizing brass for both media-contacting materials and the screwed plug. This IP43-rated component operates within medium and ambient temperatures of -20 °C to 60 °C with neutral liquids and inert gases, excluding acetylene and oxygen, while supporting ATEX Zone 1, 2, 21, and 22 explosion protection. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 529046
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 529046.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Display range
- 0 bar...16 bar | 0 psi...232 psi
- Conforms to standard
- EN 837-1
- Pressure gauge nominal size
- 40
- Explosion prevention and protection
- Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Structural design
- Bourdon tube pressure gauge
- Type of mounting
- In-line installation
- Operating medium
- Inert gases | Neutral liquids
- Information on operating and pilot media
- No acetylene | No oxygen
- Operating pressure
- 0 MPa...1.6 MPa | 0 bar...16 bar | 0 psi...232 psi
- Intermittent load factor
- 0.66
- Measurement accuracy class
- 2.5
- Degree of protection
- IP43
- Temperature of medium
- -20 °C...60 °C
- Ambient temperature
- -20 °C...60 °C
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Note on materials
- RoHS compliant
- Connection position
- Centered on rear side
- Pneumatic connection
- R1/8
- Materials in contact with the media
- Brass
- Material of screwed plug
- Brass
- Housing material
- ABS
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 529046. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
