529120

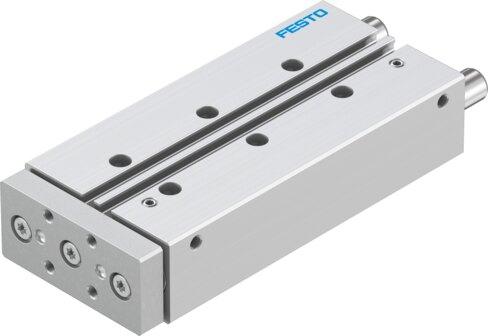

Name: Festo 529120 Guided drive DFM-16- -B
Brand: Festo

Guided drive DFM-16- -B

The Festo part number 529120 is a double-acting industrial drive unit featuring a 16 mm piston diameter, a stroke range from 10 mm to 200 mm, and a yoke drive mode operating between 0.2 MPa and 1 MPa (2 bar to 10 bar). Constructed with a plain-bearing or recirculating ball bearing guide and structural guide design, this component incorporates elastic cushioning rings/pads and adjustable pneumatic cushioning at both ends, alongside position sensing via proximity switch and variants with heat-resistant seals up to 120°C. Certified with CE and UKCA markings per EU explosion protection and UK EX instructions for ATEX Zone 1 and Zone 2 (Category II 2G, Ex h IIC T4 Gb) in explosive ambient temperatures from -20°C to +70°C, it utilizes compressed air as per ISO 8573-1:2010 [7:4:4] with optional oil lubrication and a corrosion resistance class of CRC 0 to CRC 2. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 529120
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 529120.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 10 mm...200 mm
Piston diameter: 16 mm
Drive unit operating mode: Yoke
Cushioning: Elastic cushioning rings/pads at both ends | Pneumatic cushioning, adjustable at both ends
Mounting position: Any
Guide: Plain-bearing guide | Recirculating ball bearing
Structural design: Guide
Position sensing: Via proximity switch
Variants: Heat-resistant seals max. 120°C
Operating pressure: 0.2 MPa...1 MPa | 2 bar...10 bar
Mode of operation: Double-acting
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
Explosion prevention and protection: Zone 1 (ATEX) | Zone 2 (ATEX)
ATEX category gas: II 2G
Type of ignition protection for gas: Ex h IIC T4 Gb
Explosive ambient temperature: -20°C <= Ta <= +70°C
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 0 - No corrosion stress | 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -20 °C...120 °C
Impact energy in the end positions: 0.075 J...0.15 J
Theoretical force at 6 bar, retracting: 104 N
Theoretical force at 6 bar, advancing: 121 N
Alternative connections: See product drawing
Pneumatic connection: M5
Note on materials: RoHS compliant

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 529120. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
