Festo
529150

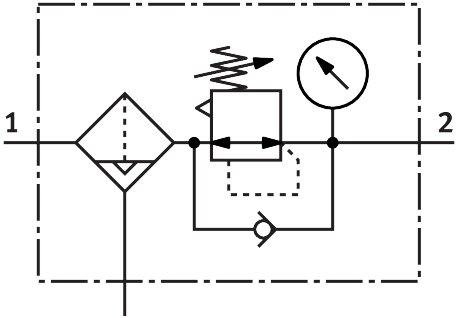

Filter regulator MS4-LFR-1/4-D6-ERV-AS
The Festo part number 529150 is an MS-series size 4 filter regulator with a pressure gauge, featuring a structural design that delivers a 1700 l/min normal nominal flow rate at an operating pressure of 2 bar to 12 bar. It provides a 0.3 bar to 7 bar pressure regulation range, 40 µm filtration, 75% condensate separation degree, and 19 ml max condensate volume through a fully automatic or manual non-detenting condensate drain. Operating with compressed air per ISO 8573-1:2010 [7:4:-] or inert gases, the component incorporates a plastic bowl guard, constant output pressure controller function with secondary exhausting and return flow characteristic, and a rotary knob actuator lock with detent that can be closed with accessories. Please submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 529150
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 529150.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 4
- Series
- MS
- Actuator lock
- Rotary knob with detent | can be closed with accessories
- Mounting position
- Vertical ±5°
- Grade of ltration
- 40 µm
- Condensate drain
- Fully automatic | Manual, non-detenting
- Structural design
- Filter regulator with pressure gauge
- Max. condensate volume
- 19 ml
- Controller function
- Constant output pressure | With secondary exhausting | With return ow characteristic
- Bowl guard
- Plastic bowl guard
- Degree of condensate separation
- 75 %
- Pressure gauge
- with pressure gauge
- Operating pressure
- 0.2 MPa...1.2 MPa | 2 bar...12 bar
- Pressure regulation range
- 0.3 bar...7 bar
- Max. pressure hysteresis
- 0.25 bar
- Normal nominal ow rate (normalized to DIN 1343)
- 1700 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:-] | Inert gases
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -10 °C...60 °C
- For use in the food industry
- See supplementary material information
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Pore size
- 40 µm
- Product weight
- 275 g
- Type of mounting
- Alternatively:
