Festo
529219

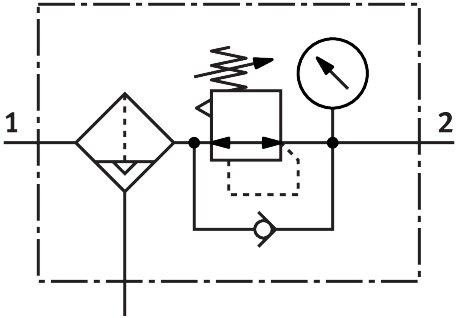

Filter regulator MS6-LFR-3/8-D6-CRV-AS-Z
The Festo 529219 is an MS-series size 6 filter regulator with a pressure gauge, featuring a 5 µm filtration grade and a fully automatic or manual non-detenting condensate drain. It provides a normal nominal flow rate of 5000 l/min across an operating pressure of 2 bar to 12 bar, maintaining a constant output pressure with secondary exhausting and a pressure regulation range of 0.3 bar to 7 bar. Built with a plastic bowl guard and a maximum condensate volume of 38 ml, this component operates within a vertical ±5° mounting position using compressed air or inert gases. Submit the exact part number, quantity, and application requirements to request a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 529219
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 529219.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 6
- Series
- MS
- Actuator lock
- Rotary knob with detent | can be closed with accessories
- Mounting position
- Vertical ±5°
- Grade of ltration
- 5 µm
- Condensate drain
- Fully automatic | Manual, non-detenting
- Structural design
- Filter regulator with pressure gauge
- Max. condensate volume
- 38 ml
- Controller function
- Constant output pressure | With secondary exhausting
- Bowl guard
- Plastic bowl guard
- Degree of condensate separation
- 75 %
- Pressure gauge
- with pressure gauge
- Operating pressure
- 0.2 MPa...1.2 MPa | 2 bar...12 bar
- Pressure regulation range
- 0.3 bar...7 bar
- Max. pressure hysteresis
- 0.025 MPa | 0.25 bar | 3.625 psi
- Normal nominal ow rate (normalized to DIN 1343)
- 5000 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:-] | Inert gases
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -10 °C...60 °C
- For use in the food industry
- See supplementary material information
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [6:4:4]
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Pore size
- 5 µm
- Product weight
- 875 g
