Festo
529350

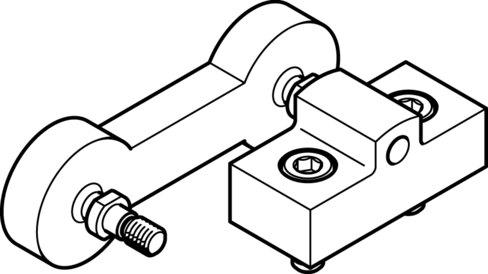

Moment compensator FKC-8/12
The Festo 529350 is an industrial component featuring a size of 8/12, a product weight of 29.3 g, and a corrosion resistance class of CRC 1 for low corrosion stress. Constructed with a wrought aluminum alloy plate, high-alloy steel ball stud, and PA-reinforced articulated joint, this RoHS-compliant part supports an ambient temperature range of -10 °C to 60 °C alongside VDMA24364-B1/B2-L LABS conformity. It accommodates a radial deviation of plus or minus 2.5 mm while withstanding a short-term maximum permissible load of 1100 N and a long-term maximum permissible load of 550 N in the direction of force. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 529350
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 529350.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 8/12
- Radial deviation +/-
- 2.5 mm
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Short-term maximum permissible load in direction of force +/-
- 1100 N
- Long-term maximum permissible load in direction of force +/-
- 550 N
- Product weight
- 29.3 g
- Note on materials
- RoHS compliant
- Articulated joint material
- PA-reinforced
- Ball stud material
- High-alloy steel
- Plate material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 529350. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
