530029

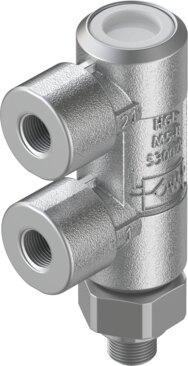

Name: Festo 530029 Piloted non return valve HGL-M5-B
Brand: Festo

Piloted non return valve HGL-M5-B

The Festo part number 530029 is an industrial component featuring an unlockable check valve function with M5 pneumatic connection 1, M5 pneumatic connection 2, and an M5 pilot air port 21. This pneumatically actuated component supports screw-in mounting with an external thread, an operating pressure of 0.05 MPa to 1 MPa (0.5 bar to 10 bar), a pilot pressure of 0.2 MPa to 1 MPa (2 bar to 10 bar / 29 psi to 145 psi), and operates within an ambient temperature range of -10 °C to 60 °C using compressed air as per ISO 8573-1:2010 [7:4:4]. It provides a standard flow rate 1->2 (6-0) of 200 l/min and a standard nominal flow rate 1->2 (6-5) of 130 l/min, featuring moderation for corrosion resistance class 2, LABS conformity VDMA24364-B2-L, ISO 14644-1 class 4 cleanroom suitability, and support for oil lubrication alongside any mounting position and maritime classification. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 530029
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 530029.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: Unlockable check valve function
Pneumatic connection 1: M5
Pneumatic connection 2: M5
Pilot air port 21: M5
Actuation type: Pneumatic
Type of mounting: Screw-in | With external thread
Operating pressure: 0.05 MPa...1 MPa | 0.5 bar...10 bar
Pilot pressure MPa: 0.2 MPa...1 MPa
Pilot pressure: 2 bar...10 bar
Pilot pressure psi: 29 psi...145 psi
Ambient temperature: -10 °C...60 °C
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Maritime classication: See certicate
Mounting position: Any
Standard ow rate 1->2 (6-0): 200 l/min
Standard nominal ow rate 1->2 (6-5): 130 l/min
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Cleanroom suitability, measured according to ISO 14644-14: Class 4 according to ISO 14644-1
Storage temperature: -10 °C...60 °C
Temperature of medium: -10 °C...60 °C
Pilot medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Nominal tightening torque: 1.25 Nm
Tolerance for nominal tightening torque: ±10%
Product weight: 21 g
Material of screwed plug: Galvanized steel
Note on materials: RoHS compliant
Seals material: NBR
Releasing ring material: POM

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 530029. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
