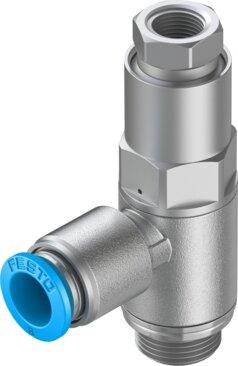

Name: Festo 530041 Piloted non return valve HGL-1/4-QS-8
Brand: Festo

Piloted non return valve HGL-1/4-QS-8

The Festo industrial component, part number 530041, is an unlockable check valve featuring a pneumatic connection 1 of QS-8, pneumatic connection 2 of G1/4, and a pilot air port 21 of G1/8. It operates within a pressure range of 0.05 MPa to 1 MPa (0.5 bar to 10 bar) and a pilot pressure of 0.2 MPa to 1 MPa (2 bar to 10 bar / 29 psi to 145 psi) using compressed air as per ISO 8573-1:2010 [7:4:4] with possible oil lubrication. Designed for screw-in mounting with an external thread in any mounting position, this unit achieves a standard flow rate 1->2 (6-0) of 640 l/min and a standard nominal flow rate 1->2 (6-5) of 390 l/min across an ambient temperature range of -10 °C to 60 °C. The component exhibits a corrosion resistance class (CRC) of 2, LABS conformity of VDMA24364-B2-L, cleanroom suitability of Class 4 according to ISO 14644-1, and maritime classification as detailed in the certificate. Submit the exact part number, quantity, and application requirements to receive a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 530041
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 530041.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: Unlockable check valve function
Pneumatic connection 1: QS-8
Pneumatic connection 2: G1/4
Pilot air port 21: G1/8
Actuation type: Pneumatic
Type of mounting: Screw-in | With external thread
Operating pressure: 0.05 MPa...1 MPa | 0.5 bar...10 bar
Pilot pressure MPa: 0.2 MPa...1 MPa
Pilot pressure: 2 bar...10 bar
Pilot pressure psi: 29 psi...145 psi
Ambient temperature: -10 °C...60 °C
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Maritime classication: See certicate
Mounting position: Any
Standard ow rate 1->2 (6-0): 640 l/min
Standard nominal ow rate 1->2 (6-5): 390 l/min
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Cleanroom suitability, measured according to ISO 14644-14: Class 4 according to ISO 14644-1
Storage temperature: -10 °C...60 °C
Temperature of medium: -10 °C...60 °C
Pilot medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Nominal tightening torque: 11 Nm
Tolerance for nominal tightening torque: ±10%
Product weight: 38.7 g
Note on materials: RoHS compliant
Seals material: NBR
Hollow bolt material: Wrought aluminum alloy | Anodized

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 530041. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
