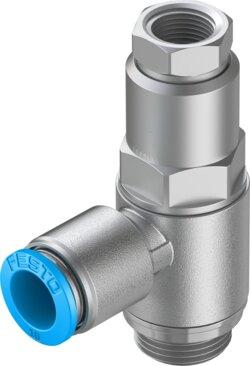

Name: Festo 530044 Piloted non return valve HGL-3/8-QS-10
Brand: Festo

Piloted non return valve HGL-3/8-QS-10

The Festo part number 530044 is a pneumatically actuated industrial component featuring an unlockable check valve function, a QS-10 pneumatic connection 1, a G3/8 pneumatic connection 2, and a G1/4 pilot air port 21. Designed for screw-in mounting with an external thread in any mounting position, this unit operates within a pressure range of 0.05 MPa to 1 MPa (0.5 bar to 10 bar) and a pilot pressure of 1 bar to 10 bar (14.5 psi to 145 psi). It delivers a standard flow rate 1->2 of 1300 l/min at 6-0 and 890 l/min at 6-5 while utilizing compressed air according to ISO 8573-1:2010 [7:4:4] with possible oil lubrication. Please submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 530044
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 530044.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: Unlockable check valve function
Pneumatic connection 1: QS-10
Pneumatic connection 2: G3/8
Pilot air port 21: G1/4
Actuation type: Pneumatic
Type of mounting: Screw-in | With external thread
Operating pressure: 0.05 MPa...1 MPa | 0.5 bar...10 bar
Pilot pressure MPa: 0.1 MPa...1 MPa
Pilot pressure: 1 bar...10 bar
Pilot pressure psi: 14.5 psi...145 psi
Ambient temperature: -10 °C...60 °C
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Maritime classication: See certicate
Mounting position: Any
Standard ow rate 1->2 (6-0): 1300 l/min
Standard nominal ow rate 1->2 (6-5): 890 l/min
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Cleanroom suitability, measured according to ISO 14644-14: Class 4 according to ISO 14644-1
Storage temperature: -10 °C...60 °C
Temperature of medium: -10 °C...60 °C
Pilot medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Nominal tightening torque: 12.5 Nm
Tolerance for nominal tightening torque: ±10%
Product weight: 60.3 g
Note on materials: RoHS compliant
Seals material: NBR
Hollow bolt material: Wrought aluminum alloy | Anodized
