Festo
530090

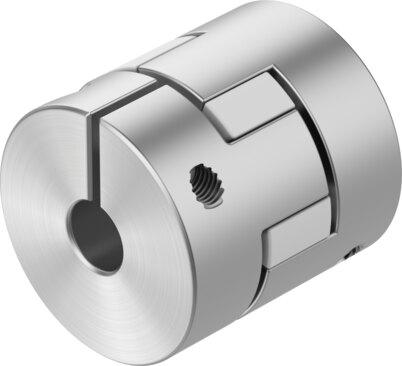

Coupling EAMC-40-66-11-11
The Festo part number 530090 is an industrial component featuring a size 40 designation and a nominal length of 66 mm with dual 11 mm holders. This unit supports a maximum rotational speed of 6500 rpm, a transferable torque of 21 Nm, and a mass moment of inertia of 42.3 kgmm², operating within an ambient and storage temperature range of -25 °C to 60 °C at 0 to 95% relative air humidity. Weighing 139 g with RoHS compliance and VDMA24364-B2-L LABS conformity, it accommodates any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 530090
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 530090.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diameter of holder 1
- 11 mm
- Diameter of holder 2
- 11 mm
- Size
- 40
- Nominal length
- 66 mm
- Mounting position
- Any
- Max. rotational speed
- 6500 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Ambient temperature
- -25 °C...60 °C
- Mass moment of inertia
- 42.3 kgmm²
- Transferable torque
- 21 Nm
- Product weight
- 139 g
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 530090. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
