Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
530222

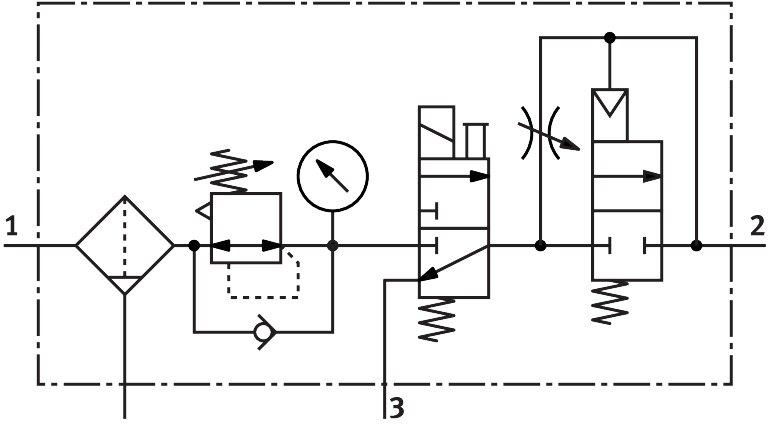

Air preparation combination unit MSB6-1/2:J1D1A1-WP
The Festo part number 530222 is an MS-series size 6 industrial component featuring a soft-start valve, an on/off valve, and a filter regulator with a pressure gauge, operating within a pressure range of 4.5 bar to 18 bar and a regulation range of 4 bar to 12 bar. It provides a normal nominal flow rate of 3100 l/min using compressed air or inert gases, supported by a 40 µm filtration grade, a manual rotating condensate drain, and a 24 V DC 1.5 W coil. This unit is built with a plastic bowl guard, a rotary knob actuator lock with detent that can be closed with accessories, and a vertical ±5° mounting position, maintaining constant output pressure with secondary exhausting and primary pressure compensation under moderate corrosion stress. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 530222
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 530222.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 6
- Series
- MS
- Actuator lock
- Rotary knob with detent | can be closed with accessories
- Mounting position
- Vertical ±5°
- Grade of ltration
- 40 µm
- Condensate drain
- Manual, rotating
- Structural design
- Soft-start valve | On/off valve | Filter regulator with pressure gauge
- Controller function
- Constant output pressure | With primary pressure compensation | With secondary exhausting | With return ow characteristic
- Bowl guard
- Plastic bowl guard
- Pressure gauge
- with pressure gauge
- Operating pressure
- 4.5 bar...18 bar
- Pressure regulation range
- 4 bar...12 bar
- Normal nominal ow rate (normalized to DIN 1343)
- 3100 l/min
- Coil characteristics
- 24 V DC: 1.5 W
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:4:-] | Inert gases
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -10 °C...60 °C
- For use in the food industry
- See supplementary material information
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 2400 g
- Type of mounting
- With accessories
- Pneumatic connection 1
- G1/2
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 530222. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
