Name: Festo 530411 Valve manifold MPA-FB-VI
Brand: Festo

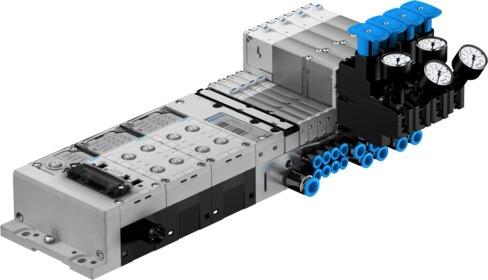

Valve manifold MPA-FB-VI

The Festo 530411 is an industrial component featuring fieldbus electrical actuation, an integrated electrical I/O system, and a valve terminal type 32 configured for compressed air operating medium complying with ISO 8573-1:2010 [7:4:4]. It operates within a medium and ambient temperature range of -5 °C to 50 °C, a storage temperature of -20 °C to 40 °C, an operating pressure of -0.9 bar to 10 bar, and a pilot pressure of 3 bar to 8 bar while achieving an IP67 degree of protection and CRC 1 corrosion resistance. This unit carries CE, UKCA, KC, RCM, and cULus certifications alongside ATEX Zone 2 and UKEX Zone 1 and 21 explosion protection compliance. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 530411
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 530411.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Electrical actuation: Fieldbus
Electrical I/O system: Yes
Valve terminal type: 32
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Temperature of medium: -5 °C...50 °C
Ambient temperature: -5 °C...50 °C
Storage temperature: -20 °C...40 °C
Relative air humidity: Max. 90% at 40°C
Degree of protection: IP67
Corrosion resistance class (CRC): 1 - Low corrosion stress
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
Pilot pressure MPa: 0.3 MPa...0.8 MPa
Pilot pressure: 3 bar...8 bar
LABS (PWIS) conformity: VDMA24364-B1/B2-L
CE marking (see declaration of conformity): As per EU EMC directive | as per EU explosion protection directive (ATEX) | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | acc. to UK EX instructions | To UK RoHS instructions
KC characters: KC-EMV
Certication: RCM compliance mark | c UL us - recognized (OL)
Explosion prevention and protection: Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 21 (UKEX)
ATEX category gas: II 3G
Explosion protection certication outside the EU: EPL Db (GB) | EPL Gb (GB)
Type of ignition protection for gas: Ex ec IIC T4 Gc X
Explosive ambient temperature: -5°C <= Ta <= +50°C
Certicate issuing authority: MH19482

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 530411. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
