Name: Festo 530906 Linear actuator DGC-8- -
Brand: Festo

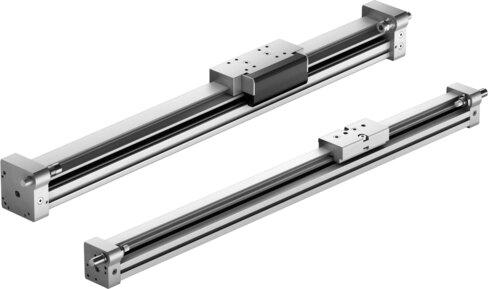

Linear actuator DGC-8- -

Engineered by Festo for double-acting operation with an 8 mm piston diameter and an adjustable stroke length from 1 mm to 2000 mm, this industrial component operates on compressed air complying with ISO 8573-1:2010 [7:-:-] at pressures ranging from 0.25 MPa to 0.8 MPa. The unit features elastic cushioning rings, pneumatic shock absorbers with hard or soft characteristic curves, position sensing via proximity switch, and variants including basic or recirculating ball bearing guides and left or right additional slides. Certified for use in ATEX and UKEX Zone 1, Zone 2, and Zone 22 explosive atmospheres within an ambient temperature range of +5°C to +60°C, it carries gas and dust ignition protection ratings of Ex h IIC T4 Gb X and Ex h IIIC T120°C Dc X. Submit the exact part number 530906, required quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 530906
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 530906.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 1 mm...2000 mm
Piston diameter: 8 mm
Cushioning: Elastic cushioning rings/pads at both ends | Pneumatic shock absorber, hard characteristic curve | Pneumatic shock absorber, soft characteristic curve
Mounting position: Any
Guide: Basic guide | Recirculating ball bearing
Position sensing: Via proximity switch
Variants: Additional slide, standard, on left | Additional slide, standard on right
Operating pressure: 0.25 MPa...0.8 MPa | 2.5 bar...8 bar
Mode of operation: Double-acting
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
Explosion protection certication outside the EU: EPL Dc (GB) | EPL Gb (GB)
Explosion prevention and protection: Zone 1 (ATEX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 22 (ATEX) | Zone 22 (UKEX)
ATEX category gas: II 2G
ATEX category for dust: II 3D
Type of ignition protection for gas: Ex h IIC T4 Gb X
Type of (ignition) protection for dust: Ex h IIIC T120°C Dc X
Explosive ambient temperature: +5°C <= Ta <= +60°C
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress | 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Theoretical force at 6 bar, retracting: 30 N
