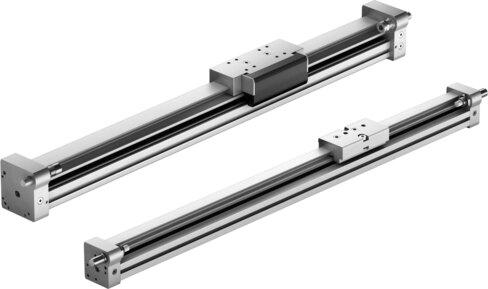

Reference imageConfirm configuration by manufacturer part number.
Festo
530907
Linear actuator DGC-12- -
The Festo 530907 is a double-acting industrial component featuring a 12 mm piston diameter with a stroke range from 1 mm to 2000 mm, operating at pressures between 0.25 MPa and 0.8 MPa (2.5 bar to 8 bar) using compressed air as per ISO 8573-1:2010 [7:-:-]. This unit is equipped with elastic cushioning rings/pads at both ends or pneumatic shock absorbers with hard or soft characteristic curves, position sensing via proximity switch, and variants including a basic or recirculating ball bearing guide and additional slides on the left or right. Certified for explosive atmospheres in Zone 1, Zone 2, and Zone 22 under ATEX and UKEX directives with an ambient temperature range of -10°C ≤ Ta ≤ +60°C, it permits operation with oil lubrication. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 530907
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 530907.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...2000 mm
- Piston diameter
- 12 mm
- Cushioning
- Elastic cushioning rings/pads at both ends | Pneumatic shock absorber, hard characteristic curve | Pneumatic shock absorber, soft characteristic curve
- Mounting position
- Any
- Guide
- Basic guide | Recirculating ball bearing
- Position sensing
- Via proximity switch
- Variants
- Additional slide, standard, on left | Additional slide, standard on right
- Operating pressure
- 0.25 MPa...0.8 MPa | 2.5 bar...8 bar
- Mode of operation
- Double-acting
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- Explosion protection certication outside the EU
- EPL Dc (GB) | EPL Gb (GB)
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 22 (ATEX) | Zone 22 (UKEX)
- ATEX category gas
- II 2G
- ATEX category for dust
- II 3D
- Type of ignition protection for gas
- Ex h IIC T4 Gb X
- Type of (ignition) protection for dust
- Ex h IIIC T120°C Dc X
- Explosive ambient temperature
- -10°C <= Ta <= +60°C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress | 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 530907. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
