Festo
530940

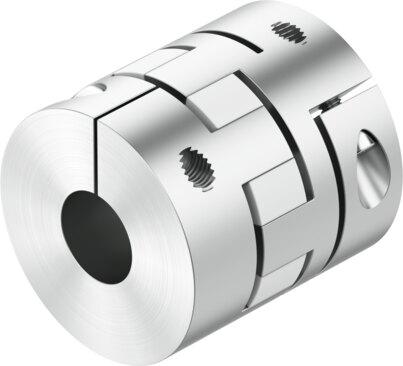

Coupling EAMC-65-90-15-24
The Festo 530940 industrial component features a size 65 designation with a 90 mm nominal length and dual holder diameters of 15 mm and 24 mm. Weighing 535 g, the unit supports an ambient and storage temperature range of -25 °C to 60 °C, relative air humidity from 0 to 95%, and VDMA24364-B2-L LABS conformity with RoHS-compliant materials. It delivers a transferable torque of 80 Nm and a mass moment of inertia of 417 kgmm² at a maximum rotational speed of 4500 rpm in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 530940
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 530940.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diameter of holder 1
- 15 mm
- Diameter of holder 2
- 24 mm
- Size
- 65
- Nominal length
- 90 mm
- Mounting position
- Any
- Max. rotational speed
- 4500 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Ambient temperature
- -25 °C...60 °C
- Mass moment of inertia
- 417 kgmm²
- Transferable torque
- 80 Nm
- Product weight
- 535 g
- Note on materials
- RoHS compliant
