Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

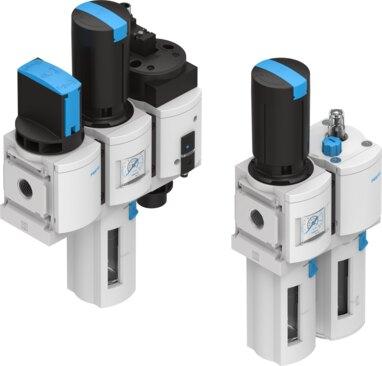

Reference imageConfirm configuration by manufacturer part number.
Festo
531030
Service unit combination MSB6
The Festo part number 531030 is a size 6 industrial component from the MS series featuring electrical, manual, and pneumatic actuation types with a rotary knob featuring an integrated lock. This unit operates within a pressure range of 1.5 bar to 20 bar and a pressure regulation range of 1 bar to 12 bar, delivering a normal nominal flow rate between 1700 l/min and 4800 l/min normalized to DIN 1343. Configured for a vertical mounting position within ±5°, it includes coil characteristics of 110 V AC at 50/60 Hz with an initial power of 3.0 VA and a holding power of 2.4 VA. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 531030
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 531030.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 6
- Series
- MS
- Actuation type
- Electrical | Manual | Pneumatic
- Actuator lock
- Rotary knob with integrated lock
- Mounting position
- Vertical ±5°
- Grade of ltration
- 0.01 µm...40 µm
- Structural design
- Branching module | Activated carbon lter | Pressure regulator with pressure gauge | Soft start/quick exhaust valve | Soft-start valve | Flow sensor | On/off valve | Fiber lter | Filter regulator with pressure gauge | Filter regulator without pressure gauge | Membrane dryer | Proportional standard oil mist lubricator | Sinter lter with centrifugal separator | Water separator | Electrically adjustable pressure regulator | Pilot-controlled precision diaphragm regulator
- Controller function
- Constant output pressure | With primary pressure compensation | With secondary exhausting | With return ow characteristic
- Bowl guard
- Plastic bowl guard | Integrated as metal bowl
- Differential pressure display
- Visual display | With pressure sensor
- Pressure gauge
- With pressure sensor | with pressure gauge
- Operating pressure
- 1.5 bar...20 bar
- Pressure regulation range
- 1 bar...12 bar
- Normal nominal ow rate (normalized to DIN 1343)
- 1700 l/min...4800 l/min
- Coil characteristics
- 110 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 531030. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
