Festo
531133
Air preparation combination unit MSB4-1/8-FRC5:J1M1
The Festo part number 531133 is an MS-series size 4 industrial component featuring a structural design of a filter regulator with pressure gauge and a proportional standard oil mist lubricator. It operates within a pressure range of 1.5 bar to 14 bar, providing a pressure regulation range of 0.5 bar to 12 bar and a normal nominal flow rate of 850 l/min using compressed air or inert gases. This unit incorporates a 40 µm grade of filtration, a manual rotating condensate drain, a plastic bowl guard, and a rotary knob actuator lock with detent that can be closed with accessories. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 531133
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 531133.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 4
- Series
- MS
- Actuator lock
- Rotary knob with detent | can be closed with accessories
- Mounting position
- Vertical ±5°
- Condensate drain
- Manual, rotating
- Structural design

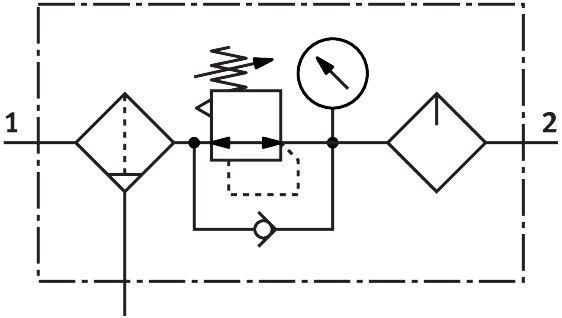

- Filter regulator with pressure gauge | Proportional standard oil mist lubricator
- Grade of ltration
- 40 µm
- Controller function
- Constant output pressure | With primary pressure compensation | With secondary exhausting | With return ow characteristic
- Bowl guard
- Plastic bowl guard
- Pressure gauge
- with pressure gauge
- Operating pressure
- 1.5 bar...14 bar
- Pressure regulation range
- 0.5 bar...12 bar
- Normal nominal ow rate (normalized to DIN 1343)
- 850 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:4:-] | Inert gases
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -10 °C...60 °C
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [7:4:-]
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 500 g
- Type of mounting
- With accessories
- Pneumatic connection 1
- G1/8
- Pneumatic connection 2
- G1/8
- Housing material
- Die-cast aluminum
- Material of bowl
- PC
