Festo
531621

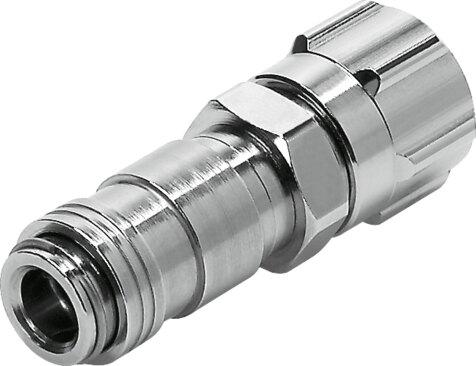

Quick coupling socket KD2-CK-3
The Festo 531621 is an 11 g industrial component featuring a 2 mm nominal width and an operating pressure range of -0.095 MPa to 1.2 MPa for compressed air media according to ISO 8573-1:2010 [7:-:-]. Constructed with a nickel-plated brass housing, brass valve body, NBR seals, high-alloy stainless steel internal springs, and an anodized wrought aluminum alloy union nut, this unit supports lubricated operation with a normal nominal flow rate of 68 l/min to 88 l/min normalized to DIN 1343. It provides pneumatic connection 1 for 4 mm outside diameter tubing or a 3 mm inside diameter barbed fitting with a union nut, maintaining a CRC rating of 1 and VDMA24364-B1/B2-L LABS conformity within ambient temperatures of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 531621
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 531621.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 2 mm
- Operating pressure for entire temperature range
- -0.095 MPa...1.2 MPa | -0.95 bar...12 bar | -13.775 psi...174 psi
- Normal nominal ow rate (normalized to DIN 1343)
- 68 l/min...88 l/min
- Nominal ow rate standardized according to ISO 8778
- 73.7 l/min...95.4 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 11 g
- Pneumatic connection 1
- for pneumatic tubing outside diameter 4 mm | For barbed tting, inside diameter 3 mm, with union nut
- Material of union nut
- Wrought aluminum alloy, anodized
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Material of spring
- high-alloy stainless steel
- Housing material
- Brass, nickel-plated
- Ball material
- high-alloy stainless steel
- Circlip material
- high-alloy stainless steel
- Valve body material
- Brass
- Material releasing sleeve
- Brass, nickel-plated
