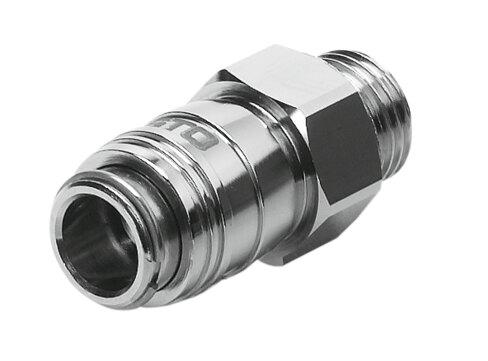

Reference imageConfirm configuration by manufacturer part number.
Festo
531626
Quick coupling socket KD3-1/4-A
The Festo 531626 is a 5 mm nominal width industrial component featuring a G1/4 external thread pneumatic connection 1 and an operating pressure range of -0.095 MPa to 1.2 MPa (-0.95 bar to 12 bar / -13.775 psi to 174 psi). Built with a nickel-plated brass housing, NBR seals, a high-alloy stainless steel spring and ball, and a PA66-GF30 / TPE-U threaded seal, this 35 g part delivers a normal nominal flow rate of 185 l/min to 594 l/min (normalized to DIN 1343) and an ISO 8778 standardized nominal flow rate of 200.5 l/min to 643.9 l/min for compressed air media per ISO 8573-1:2010 [7:-:-]. It operates in ambient temperatures from -10 °C to 60 °C with a nominal tightening torque of 9.5 Nm at a ±15% tolerance, supports lubricated operation, possesses a corrosion resistance class (CRC) of 1, and conforms to VDMA24364-B1/B2-L LABS (PWIS) with RoHS-compliant materials. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 531626
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 531626.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 5 mm
- Operating pressure for entire temperature range
- -0.095 MPa...1.2 MPa | -0.95 bar...12 bar | -13.775 psi...174 psi
- Normal nominal ow rate (normalized to DIN 1343)
- 185 l/min...594 l/min
- Nominal ow rate standardized according to ISO 8778
- 200.5 l/min...643.9 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Nominal tightening torque
- 9.5 Nm
- Tolerance for nominal tightening torque
- ±15%
- Product weight
- 35 g
- Pneumatic connection 1
- External thread G1/4
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Material of spring
- high-alloy stainless steel
- Housing material
- Brass, nickel-plated
- Material of threaded seal
- PA66-GF30 / TPE-U
- Threaded coupling material
- Brass, nickel-plated
- Ball material
- high-alloy stainless steel
- Circlip material
- high-alloy stainless steel
- Valve body material
- Brass
- Material releasing sleeve
- Brass, nickel-plated
