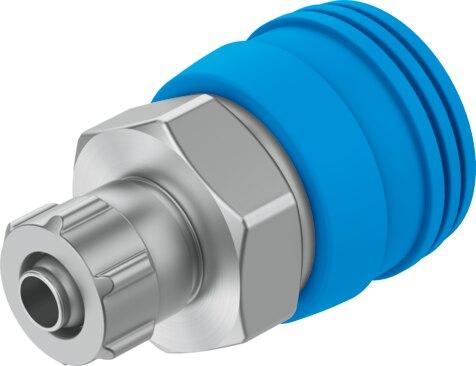

Name: Festo 531639 Quick coupling socket KD4-CK-6
Brand: Festo

Quick coupling socket KD4-CK-6

The Festo 531639 is an industrial component featuring a nominal width of 4.9 mm and an operating pressure range of -0.095 MPa to 1.2 MPa for compressed air operation according to ISO 8573-1:2010 [7:-:-]. Constructed with a nickel-plated brass housing, NBR seals, and a wrought aluminum alloy anodized union nut, this 63 g part accommodates an 8 mm pneumatic tubing outside diameter or a barbed fitting with a 6 mm inside diameter using a union nut. It delivers a normal nominal flow rate of 252 l/min to 756 l/min alongside an ISO 8778 standardized flow rate of 273.2 l/min to 819.5 l/min within an ambient temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 531639
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 531639.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Nominal width: 4.9 mm
Operating pressure for entire temperature range: -0.095 MPa...1.2 MPa | -0.95 bar...12 bar | -13.775 psi...174 psi
Normal nominal ow rate (normalized to DIN 1343): 252 l/min...756 l/min
Nominal ow rate standardized according to ISO 8778: 273.2 l/min...819.5 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media: Lubricated operation possible
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -10 °C...60 °C
Product weight: 63 g
Pneumatic connection 1: for pneumatic tubing outside diameter 8 mm | For barbed tting, inside diameter 6 mm, with union nut
Material of union nut: Wrought aluminum alloy, anodized
Note on materials: RoHS compliant
Seals material: NBR
Material of spring: high-alloy stainless steel
Housing material: Brass, nickel-plated
Inner raceway material: Brass
Circlip material: high-alloy stainless steel
Material of pins: high-alloy stainless steel
Valve body material: Brass
Material releasing sleeve: PP

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 531639. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
