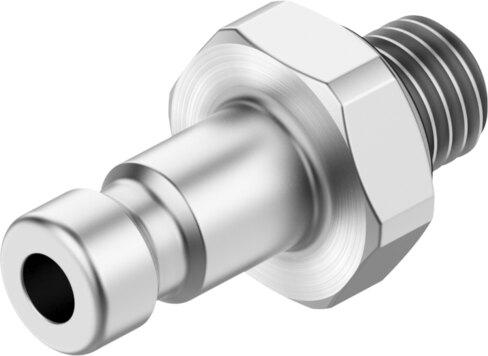

Reference imageConfirm configuration by manufacturer part number.
Festo
531658
Quick coupling plug KS2-M5-A
The Festo part number 531658 is an industrial component featuring an M5 external thread pneumatic connection 1 and a nominal width of 2.4 mm, constructed from nickel-plated brass with an NBR and high-alloy stainless steel threaded seal. It operates within a pressure range of -0.095 MPa to 1.2 MPa (-0.95 bar to 12 bar / -13.775 psi to 174 psi) and an ambient temperature range of -10 °C to 60 °C, supporting compressed air media per ISO 8573-1:2010 [7:-:-] with optional lubricated operation. Weighing 5 g with a CRC rating of 1 and VDMA24364-B1/B2-L LABS conformity, this RoHS compliant part requires a nominal tightening torque of 0.85 Nm with a ±15% tolerance to achieve normalized flow rates between 85 l/min and 136 l/min (ISO 8778 standardized flow of 92.1 l/min to 147.4 l/min). Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 531658
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 531658.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 2.4 mm
- Operating pressure for entire temperature range
- -0.095 MPa...1.2 MPa | -0.95 bar...12 bar | -13.775 psi...174 psi
- Normal nominal ow rate (normalized to DIN 1343)
- 85 l/min...136 l/min
- Nominal ow rate standardized according to ISO 8778
- 92.1 l/min...147.4 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Nominal tightening torque
- 0.85 Nm
- Tolerance for nominal tightening torque
- ±15%
- Product weight
- 5 g
- Pneumatic connection 1
- External thread M5
- Note on materials
- RoHS compliant
- Material of threaded seal
- NBR | high-alloy stainless steel
- Information on materials
- Brass, nickel-plated
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 531658. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
