Festo
531667

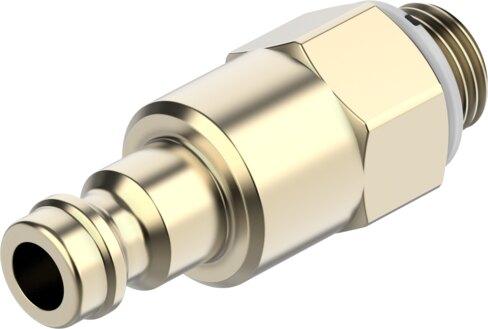

Quick coupling plug KS3-1/8-A-R
The Festo 531667 is an industrial component featuring a 4.2 mm nominal width, an external thread G1/8 pneumatic connection 1, and a product weight of 32 g with a nominal tightening torque of 5 Nm at a tolerance of ±15%. Constructed with a brass valve body, high-alloy stainless steel spring, NBR seals, and a PA66-GF30 and TPE-U threaded seal, this RoHS-compliant part operates within a temperature range of -10 °C to 60 °C and handles compressed air according to ISO 8573-1:2010 [7:-:-] at pressures from -0.095 MPa to 1.2 MPa with lubricated operation possible. It possesses a CRC rating of 1 for low corrosion stress and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 531667
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 531667.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 4.2 mm
- Operating pressure for entire temperature range
- -0.095 MPa...1.2 MPa | -0.95 bar...12 bar | -13.775 psi...174 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Nominal tightening torque
- 5 Nm
- Tolerance for nominal tightening torque
- ±15%
- Product weight
- 32 g
- Pneumatic connection 1
- External thread G1/8
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Material of spring
- high-alloy stainless steel
- Material of threaded seal
- PA66-GF30 / TPE-U
- Information on materials
- Brass
- Valve body material
- Brass
