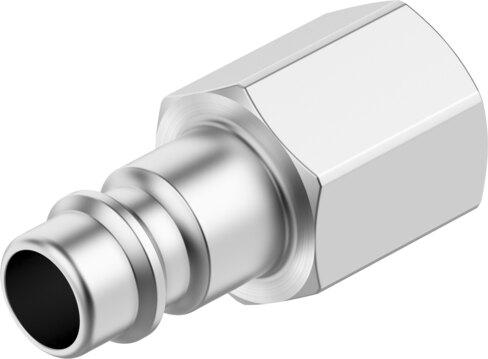

Reference imageConfirm configuration by manufacturer part number.
Festo
531678
Quick coupling plug KS4-1/4-I
The Festo 531678 is an industrial component featuring a 7.85 mm nominal width, an internal thread G1/4 pneumatic connection 1, and nickel-plated brass material construction with RoHS compliance. This nickel-plated brass part operates across a pressure range of -0.095 MPa to 1.2 MPa (-0.95 bar to 12 bar / -13.775 psi to 174 psi) using compressed air conforming to ISO 8573-1:2010 [7:-:-], supporting both standard and lubricated operation within an ambient temperature of -10 °C to 60 °C. It provides a normal nominal flow rate of 720 l/min to 1161 l/min (normalized to DIN 1343), a standardized flow rate of 780.5 l/min to 1258.5 l/min (to ISO 8778), a nominal tightening torque of 9.5 Nm with a ±15% tolerance, a corrosion resistance class of 1, LABS conformity under VDMA24364-B1/B2-L, and a product weight of 31 g. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 531678
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 531678.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 7.85 mm
- Operating pressure for entire temperature range
- -0.095 MPa...1.2 MPa | -0.95 bar...12 bar | -13.775 psi...174 psi
- Normal nominal ow rate (normalized to DIN 1343)
- 720 l/min...1161 l/min
- Nominal ow rate standardized according to ISO 8778
- 780.5 l/min...1258.5 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Nominal tightening torque
- 9.5 Nm
- Tolerance for nominal tightening torque
- ±15%
- Product weight
- 31 g
- Pneumatic connection 1
- Internal thread G1/4
- Note on materials
- RoHS compliant
- Information on materials
- Brass, nickel-plated
