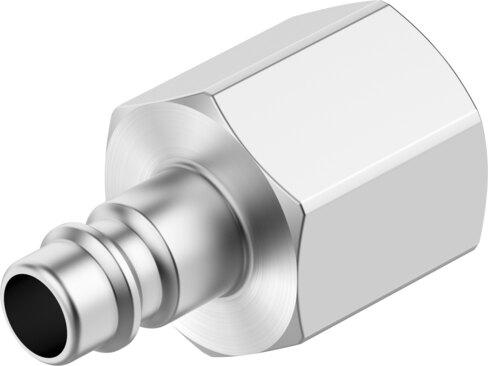

Reference imageConfirm configuration by manufacturer part number.
Festo
531680
Quick coupling plug KS4-1/2-I
The Festo industrial component, part number 531680, features a nominal width of 7.85 mm and an internal thread G1/2 pneumatic connection 1, constructed from nickel-plated brass with RoHS compliance and a product weight of 57 g. It operates across a pressure range of -0.095 MPa to 1.2 MPa (-0.95 bar to 12 bar / -13.775 psi to 174 psi) in ambient temperatures from -10 °C to 60 °C, delivering a normal nominal flow rate of 756 l/min to 1314 l/min (normalized to DIN 1343) and 819.5 l/min to 1424.4 l/min (standardized to ISO 8778) using compressed air as per ISO 8573-1:2010 [7:-:-] with optional lubricated operation. The unit requires a nominal tightening torque of 32.5 Nm with a ±20% tolerance, and achieves a corrosion resistance class (CRC) of 1 with VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 531680
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 531680.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 7.85 mm
- Operating pressure for entire temperature range
- -0.095 MPa...1.2 MPa | -0.95 bar...12 bar | -13.775 psi...174 psi
- Normal nominal ow rate (normalized to DIN 1343)
- 756 l/min...1314 l/min
- Nominal ow rate standardized according to ISO 8778
- 819.5 l/min...1424.4 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Nominal tightening torque
- 32.5 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 57 g
- Pneumatic connection 1
- Internal thread G1/2
- Note on materials
- RoHS compliant
- Information on materials
- Brass, nickel-plated
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 531680. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
