531775

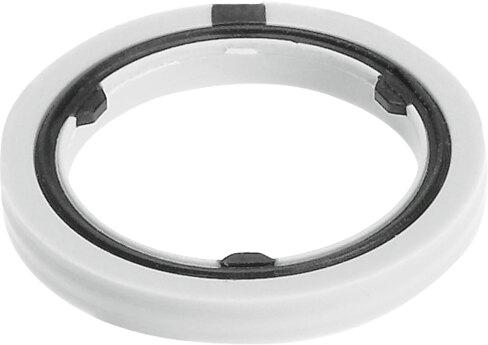

Name: Festo 531775 Sealing ring OK-3/4
Brand: Festo

Sealing ring OK-3/4

The Festo 531775 is an industrial component based on ISO 16030 with a G3/4 pneumatic connection and a product weight of 1 g. It operates with compressed air as per ISO 8573-1:2010 [7:4:4] across an operating pressure range of -0.095 MPa to 1 MPa (-0.95 bar to 10 bar or -13.775 psi to 145 psi) and an ambient temperature range of -10 °C to 60 °C. The unit features PA-reinforced stops, TPE-U(PU) seals, a corrosion resistance class of CRC 2, and accommodates oil lubrication when required for further use. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 531775
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 531775.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Based on norm: ISO 16030
Operating pressure for entire temperature range: -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Ambient temperature: -10 °C...60 °C
Manual tightening at RT: Yes
Nominal tightening torque: 35 Nm
Tolerance for nominal tightening torque: ±10%
Product weight: 1 g
Pneumatic connection: G3/4
Note on materials: RoHS compliant
Stops material: PA-reinforced
Seals material: TPE-U(PU)

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 531775. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
