532041

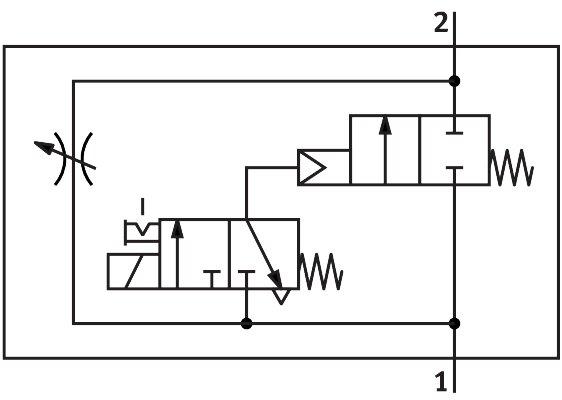

Name: Festo 532041 Soft-start valve MS6N-DE-1/4-V110
Brand: Festo

Soft-start valve MS6N-DE-1/4-V110

The Festo 532041 is an electrical 2/2 piston seat industrial component featuring a piloted control type, internal pilot air supply port, and non-reversible flow direction with a mechanical spring reset method. It operates within a pressure range of 4 bar to 18 bar, delivering a normal nominal flow rate of 2700 l/min, a C value of 11.22 l/sbar, a b-value of 0.54, and a 100% duty cycle on 110 V AC 50/60 Hz with an initial power of 3.0 VA and holding power of 2.4 VA. Built with a moderate corrosion resistance class (CRC 2), detenting and non-detenting manual override, and any mounting position, this c UL-Recognized (OL) unit utilizes compressed air per ISO 8573-1:2010 [7:4:4] or inert gases, allowing oil lubrication operation. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 532041
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 532041.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Actuation type: Electrical
Mounting position: Any
Manual override: Detenting | Non-detenting
Structural design: Piston seat
Reset method: Mechanical spring
Type of control: Piloted
Pilot air supply port: Internal
Flow direction: Non-reversible
Valve function: 2/2
Switching position indication: with accessories
Operating pressure: 4 bar...18 bar
b-value: 0.54
C value: 11.22 l/sbar
Normal nominal ow rate (normalized to DIN 1343): 2700 l/min
Duty cycle: 100%
Coil characteristics: 110 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA
Certication: c UL - Recognized (OL)
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
For use in the food industry: See supplementary material information
Temperature of medium: -10 °C...60 °C
Degree of protection: IP65
Ambient temperature: -10 °C...60 °C
Product weight: 680 g
Electrical connection: Type C | Plug | As per DIN EN 175301-803 | Rectangular design
Signal status display: With accessories

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 532041. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
