Festo
532050

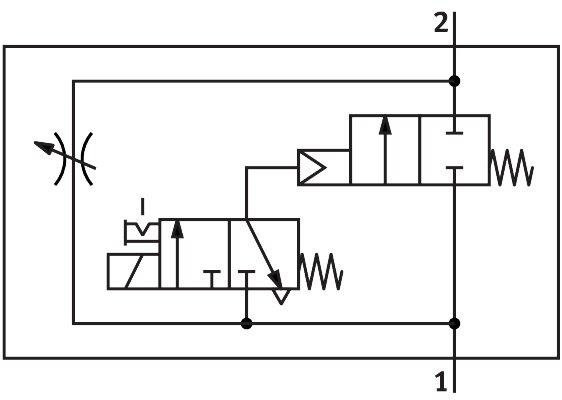

Soft-start valve MS6N-DE-1/4-V230-Z
The Festo 532050 is a 2/2 piloted industrial component featuring a piston seat structural design and electrical actuation with both detenting and non-detenting manual override. It operates within a pressure range of 4 bar to 18 bar, delivering a normal nominal flow rate of 2700 l/min at a 100% duty cycle using 230 V AC 50/60 Hz power. This c UL recognized unit includes internal pilot air supply, mechanical spring reset, non-reversible flow direction, and moderate corrosion resistance class (CRC) 2. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 532050
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 532050.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Actuation type
- Electrical
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Structural design
- Piston seat
- Reset method
- Mechanical spring
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Valve function
- 2/2
- Switching position indication
- with accessories
- Operating pressure
- 4 bar...18 bar
- b-value
- 0.54
- C value
- 11.22 l/sbar
- Normal nominal ow rate (normalized to DIN 1343)
- 2700 l/min
- Duty cycle
- 100%
- Coil characteristics
- 230 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA
- Certication
- c UL - Recognized (OL)
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- For use in the food industry
- See supplementary material information
- Temperature of medium
- -10 °C...60 °C
- Degree of protection
- IP65
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 680 g
- Electrical connection
- Type C | Plug | As per DIN EN 175301-803 | Rectangular design
- Signal status display
- With accessories
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 532050. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
