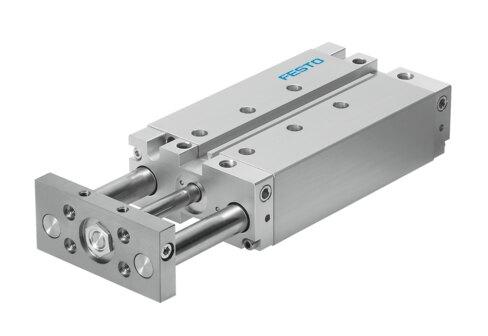

Name: Festo 532319 Guided drive DFM-40- -B
Brand: Festo

Guided drive DFM-40- -B

The Festo part number 532319 is a double-acting industrial component featuring a 40 mm piston diameter, a stroke range from 25 mm to 400 mm, and a yoke drive unit operating mode. This guide structural design incorporates either a plain-bearing guide or recirculating ball bearing, adjustable pneumatic cushioning at both ends, elastic cushioning rings or pads at both ends, and a pneumatic shock absorber with a soft characteristic curve. Certified for hazardous locations under ATEX and UKCA directives with Zone 1 and Zone 2 gas explosion protection, the unit operates within a 1.5 bar to 10 bar pressure range using compressed air according to ISO 8573-1:2010 [7:4:4]. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 532319
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 532319.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 25 mm...400 mm
Piston diameter: 40 mm
Drive unit operating mode: Yoke
Cushioning: Elastic cushioning rings/pads at both ends | Pneumatic cushioning, adjustable at both ends | Pneumatic shock absorber, soft characteristic curve
Mounting position: Any
Guide: Plain-bearing guide | Recirculating ball bearing
Structural design: Guide
Position sensing: Via proximity switch
Variants: Heat-resistant seals max. 120°C
Operating pressure: 0.15 MPa...1 MPa | 1.5 bar...10 bar
Mode of operation: Double-acting
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
Explosion prevention and protection: Zone 1 (ATEX) | Zone 2 (ATEX)
ATEX category gas: II 2G
Type of ignition protection for gas: Ex h IIC T4 Gb
Explosive ambient temperature: -20°C <= Ta <= +70°C
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 0 - No corrosion stress | 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -20 °C...120 °C
Impact energy in the end positions: 0.35 J...0.7 J
Theoretical force at 6 bar, retracting: 686 N
Theoretical force at 6 bar, advancing: 754 N
Alternative connections: See product drawing
Pneumatic connection: G1/8

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 532319. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
