Festo
532448

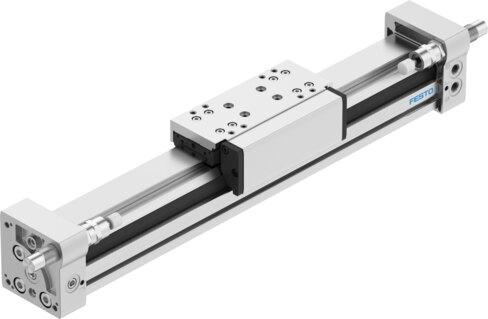

Linear actuator DGC-32- -
The Festo 532448 is a double-acting industrial component featuring a 32 mm piston diameter and a stroke range from 1 mm to 8500 mm, operating at pressures between 0.2 MPa and 0.8 MPa (2 bar to 8 bar) using compressed air as per ISO 8573-1:2010 [7:-:-]. This unit accommodates any mounting position and includes proximity switch position sensing, multiple cushioning options, and guide variants including plain-bearing, basic, and recirculating ball bearing types. Certified for explosive atmospheres with ATEX, UKEX, and EPL Gb/Dc ratings, it functions in hazardous zones 1, 2, and 22 across ambient temperatures from -10°C to +60°C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 532448
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 532448.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...8500 mm
- Piston diameter
- 32 mm
- Cushioning
- Elastic cushioning rings/pads at both ends | Pneumatic cushioning, adjustable at both ends | Pneumatic shock absorber, hard characteristic curve | Pneumatic shock absorber, soft characteristic curve
- Mounting position
- Any
- Guide
- Plain-bearing guide | Basic guide | Recirculating ball bearing
- Position sensing
- Via proximity switch
- Variants
- Axis clamping unit | Protected recirculating ball bearing guide | Additional slide, standard, on left | Additional slide, standard on right
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar
- Mode of operation
- Double-acting
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- Explosion protection certication outside the EU
- EPL Dc (GB) | EPL Gb (GB)
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 22 (ATEX) | Zone 22 (UKEX)
- ATEX category gas
- II 2G
- ATEX category for dust
- II 3D
- Type of ignition protection for gas
- Ex h IIC T4 Gb X
- Type of (ignition) protection for dust
- Ex h IIIC T120°C Dc X
- Explosive ambient temperature
- -10°C <= Ta <= +60°C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress | 1 - Low corrosion stress
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 532448. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
