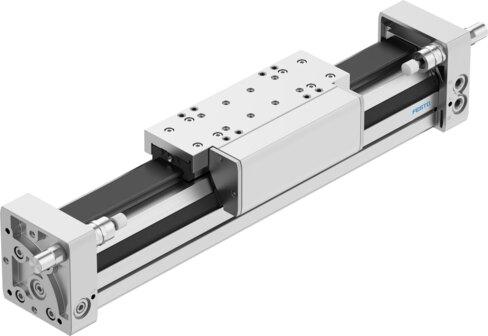

Name: Festo 532450 Linear actuator DGC-50- -
Brand: Festo

Linear actuator DGC-50- -

The Festo part number 532450 is a double-acting industrial component featuring a 50 mm piston diameter, a configurable stroke ranging from 1 mm to 5000 mm, and an operating pressure of 0.15 MPa to 0.8 MPa (1.5 bar to 8 bar). It accommodates any mounting position, offers multiple cushioning and guide options, includes position sensing via proximity switch, and supports optional variants such as an axis clamping unit or additional slides. Certified for use with compressed air per ISO 8573-1:2010 [7:-:-] where oil lubrication is possible and required for further use, this unit carries CE and UKCA markings per explosion protection directives, featuring ATEX category II 2G for gas and II 3D for dust across specified Zone 1, 2, and 22 environments within an explosive ambient temperature range of -10°C to +60°C. Submit the exact part number, quantity, and application requirements to request a quote for this component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 532450
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 532450.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 1 mm...5000 mm
Piston diameter: 50 mm
Cushioning: Elastic cushioning rings/pads at both ends | Pneumatic cushioning, adjustable at both ends | Pneumatic shock absorber, hard characteristic curve | Pneumatic shock absorber, soft characteristic curve
Mounting position: Any
Guide: Plain-bearing guide | Basic guide | Recirculating ball bearing
Position sensing: Via proximity switch
Variants: Axis clamping unit | Additional slide, standard, on left | Additional slide, standard on right
Operating pressure: 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
Mode of operation: Double-acting
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
Explosion protection certication outside the EU: EPL Dc (GB) | EPL Gb (GB)
Explosion prevention and protection: Zone 1 (ATEX) | Zone 1 (UKEX) | Zone 2 (ATEX) | Zone 22 (ATEX) | Zone 22 (UKEX)
ATEX category gas: II 2G
ATEX category for dust: II 3D
Type of ignition protection for gas: Ex h IIC T4 Gb X
Type of (ignition) protection for dust: Ex h IIIC T120°C Dc X
Explosive ambient temperature: -10°C <= Ta <= +60°C
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 0 - No corrosion stress | 1 - Low corrosion stress | 2 - Moderate corrosion stress

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 532450. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
