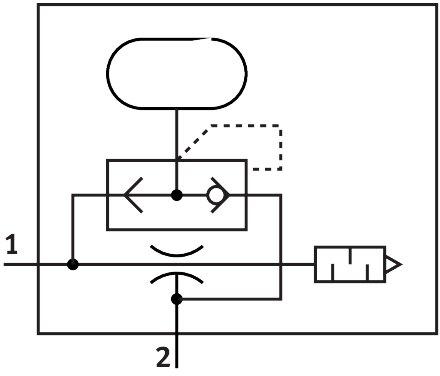

Reference imageConfirm configuration by manufacturer part number.
Festo
532621
Vacuum generator VN-05-L-T3-PQ2-VQ2-RO1-A
The Festo part number 532621 is an industrial component featuring a T-shape structural design with a 0.45 mm nominal width Laval nozzle and a 14 mm width dimension. This unit delivers standard ejector characteristics with a high suction volume, integrating a pneumatic ejector pulse valve and an open muffler construction that yields a noise level of 52 dB(A) at a nominal operating pressure of 6 bar. It operates within a pressure range of 1 bar to 8 bar, achieving a maximum suction rate of 13.6 l/min at an operating pressure of 5 bar and an air supply time of 1.93 s at nominal operating pressure using compressed air as per ISO 8573-1:2010 [7:4:4]. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 532621
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 532621.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width of Laval nozzle
- 0.45 mm
- Width dimension
- 14 mm
- Muffler construction type
- Open
- Mounting position
- Any
- Ejector characteristics
- Standard | High suction volume
- Integrated function
- Ejector pulse valve, pneumatic | Muffler open
- Structural design
- T-shape
- Operating pressure for max. suction rate
- 5 bar
- Operating pressure
- 1 bar...8 bar
- Nominal operating pressure
- 6 bar
- Max. suction rate with respect to atmosphere
- 13.6 l/min
- Air supply time at nominal operating pressure
- 1.93 s
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- 0 °C...60 °C
- Cleaning advice
- Soap suds
- Noise level at nominal operating pressure
- 52 dB(A)
- Ambient temperature
- 0 °C...60 °C
- Max. tightening torque
- 0.5 Nm
- Product weight
- 49 g
- Type of mounting
- With through-hole | With DIN rail | With accessories
- Pneumatic connection 1
- QS-6
- Pneumatic connection 3
- Muffler open
- Vacuum connection
- QS-6
- Material of connecting thread
- Wrought aluminum alloy, anodized
- Note on materials
- RoHS compliant
