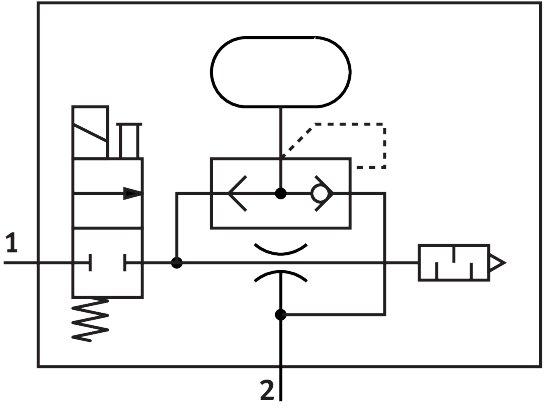

Reference imageConfirm configuration by manufacturer part number.
Festo
532622
Vacuum generator VN-05-H-T3-PQ2-VQ2-RO1-B
The Festo 532622 industrial component features a T-shaped structural design with a 0.45 mm nominal width Laval nozzle and a 14 mm width dimension. This unit delivers standard and high negative pressure ejector characteristics with a max vacuum of 92%, a max suction rate of 7.2 l/min, and an operating pressure range from 2 bar to 8 bar utilizing compressed air as per ISO 8573-1:2010 [7:4:4]. Integrated functions include a pneumatic ejector pulse valve, an electric on-off 2/2 valve, an open muffler construction type, and a non-detenting manual override operating within a 21.6 V to 26.4 V DC range at 1.2 W power consumption and a 100% duty cycle. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 532622
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 532622.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width of Laval nozzle
- 0.45 mm
- Width dimension
- 14 mm
- Muffler construction type
- Open
- Mounting position
- Any
- Ejector characteristics
- Standard | High negative pressure
- Manual override
- Non-detenting
- Integrated function
- Ejector pulse valve, pneumatic | Electric on-off valve | Muffler open
- Structural design
- T-shape
- Valve function
- 2/2
- Operating pressure for max. suction rate
- 3 bar
- Operating pressure
- 2 bar...8 bar
- Operating pressure for max. vacuum
- 4.9 bar
- Max. vacuum
- 92 %
- Nominal operating pressure
- 6 bar
- Max. suction rate with respect to atmosphere
- 7.2 l/min
- Air supply time at nominal operating pressure
- 3.9 s
- DC operating voltage range
- 21.6 V...26.4 V
- Electrical power consumption
- 1.2 W
- Duty cycle
- 100%
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- 0 °C...50 °C
- Noise level at nominal operating pressure
- 56 dB(A)
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...50 °C
- Product weight
- 62 g
- Electrical connection
- Plug
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 532622. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
