Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

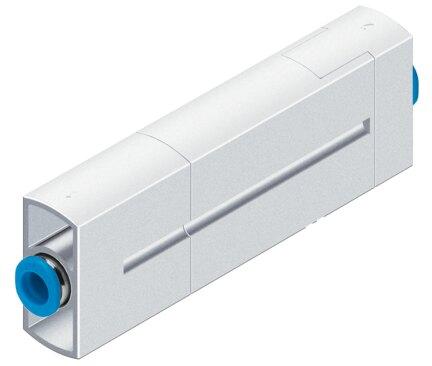

Reference imageConfirm configuration by manufacturer part number.
Festo
532624
Vacuum generator VN-05-M-I3-PQ2-VQ2-A
The Festo 532624 is a straight industrial component featuring a 0.45 mm Laval nozzle width, a 14.5 mm width dimension, and an inline ejector characteristic with high negative pressure. Designed with any mounting position and an integrated pneumatic ejector pulse valve, it operates within a pressure range of 1 bar to 8 bar, achieving a maximum vacuum of 93% at 4.3 bar operating pressure and a maximum suction rate of 7.2 l/min at 2 bar. It utilizes compressed air as per ISO 8573-1:2010 [7:4:4] without oil lubrication, maintains a 66 dB(A) noise level at a 6 bar nominal operating pressure, and functions at medium temperatures from 0 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 532624
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 532624.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width of Laval nozzle
- 0.45 mm
- Width dimension
- 14.5 mm
- Mounting position
- Any
- Ejector characteristics
- Inline | High negative pressure
- Integrated function
- Ejector pulse valve, pneumatic
- Structural design
- Straight design
- Operating pressure for max. suction rate
- 2 bar
- Operating pressure
- 1 bar...8 bar
- Operating pressure for max. vacuum
- 4.3 bar
- Max. vacuum
- 93 %
- Nominal operating pressure
- 6 bar
- Max. suction rate with respect to atmosphere
- 7.2 l/min
- Air supply time at nominal operating pressure
- 4.1 s
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- 0 °C...60 °C
- Cleaning advice
- Soap suds
- Noise level at nominal operating pressure
- 66 dB(A)
- Ambient temperature
- 0 °C...60 °C
- Product weight
- 38 g
- Type of mounting
- In-line installation
- Pneumatic connection 1
- QS-6
- Vacuum connection
- QS-6
- Material of connecting thread
- Wrought aluminum alloy, anodized
- Note on materials
- RoHS compliant
- Seals material
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 532624. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
