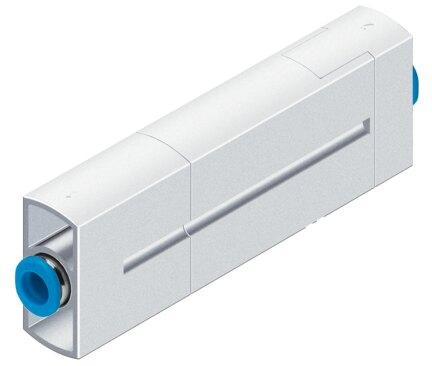

Reference imageConfirm configuration by manufacturer part number.
Festo
532625
Vacuum generator VN-05-N-I3-PQ2-VQ2-A
The Festo 532625 is an inline industrial component featuring a 0.45 mm Laval nozzle width, a straight structural design, and an integrated pneumatic ejector pulse valve delivering high suction volume. Operating efficiently between 1 bar and 8 bar with a nominal operating pressure of 6 bar, this 38 g unit achieves a maximum suction rate of 13.3 l/min at a 5 bar operating pressure and a 68 dB(A) noise level. It functions exclusively with compressed air meeting ISO 8573-1:2010 [7:4:4] standards without oil lubrication, maintaining a medium and ambient temperature range of 0 °C to 60 °C alongside a CRC rating of 1. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 532625
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 532625.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width of Laval nozzle
- 0.45 mm
- Width dimension
- 14.5 mm
- Mounting position
- Any
- Ejector characteristics
- Inline | High suction volume
- Integrated function
- Ejector pulse valve, pneumatic
- Structural design
- Straight design
- Operating pressure for max. suction rate
- 5 bar
- Operating pressure
- 1 bar...8 bar
- Nominal operating pressure
- 6 bar
- Max. suction rate with respect to atmosphere
- 13.3 l/min
- Air supply time at nominal operating pressure
- 2.24 s
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- 0 °C...60 °C
- Cleaning advice
- Soap suds
- Noise level at nominal operating pressure
- 68 dB(A)
- Ambient temperature
- 0 °C...60 °C
- Product weight
- 38 g
- Type of mounting
- In-line installation
- Pneumatic connection 1
- QS-6
- Vacuum connection
- QS-6
- Material of connecting thread
- Wrought aluminum alloy, anodized
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Female nozzle material
- POM
- Housing material
- PA-reinforced | Reinforced POM
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 532625. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
