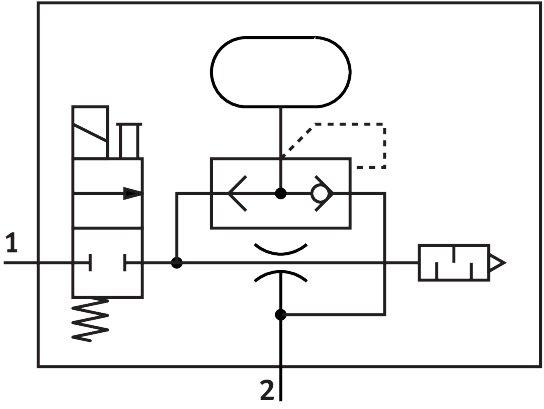

Reference imageConfirm configuration by manufacturer part number.
Festo
532631
Vacuum generator VN-07-L-T3-PQ2-VQ2-RO1-B
The Festo part number 532631 is an industrial component featuring a T-shaped structural design with a 14 mm width dimension and a 0.7 mm nominal width Laval nozzle. This unit delivers standard ejector characteristics with a high suction volume, achieving a maximum suction rate of 30.9 l/min at an operating pressure of 4 bar within a total operating pressure range of 2 bar to 8 bar. Integrated functions include a pneumatic ejector pulse valve, an electric 2/2 on-off valve with non-detenting manual override, and an open muffler construction, operating on a 100% duty cycle at 1.2 W and 21.6 V to 26.4 V DC. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 532631
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 532631.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width of Laval nozzle
- 0.7 mm
- Width dimension
- 14 mm
- Muffler construction type
- Open
- Mounting position
- Any
- Ejector characteristics
- Standard | High suction volume
- Manual override
- Non-detenting
- Integrated function
- Ejector pulse valve, pneumatic | Electric on-off valve | Muffler open
- Structural design
- T-shape
- Valve function
- 2/2
- Operating pressure for max. suction rate
- 4 bar
- Operating pressure
- 2 bar...8 bar
- Nominal operating pressure
- 6 bar
- Max. suction rate with respect to atmosphere
- 30.9 l/min
- Air supply time at nominal operating pressure
- 0.83 s
- DC operating voltage range
- 21.6 V...26.4 V
- Electrical power consumption
- 1.2 W
- Duty cycle
- 100%
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- 0 °C...50 °C
- Noise level at nominal operating pressure
- 64 dB(A)
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...50 °C
- Product weight
- 63 g
- Electrical connection
- Plug
- Type of mounting
- With through-hole | With DIN rail | With accessories
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 532631. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
