532634

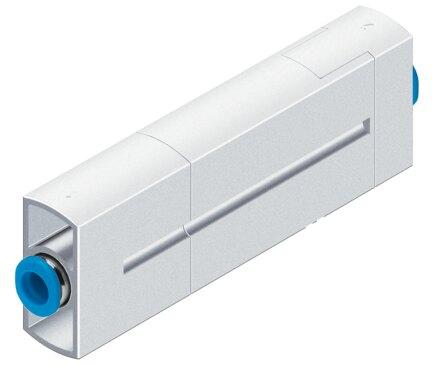

Name: Festo 532634 Vacuum generator VN-07-M-I3-PQ2-VQ2-A
Brand: Festo

Vacuum generator VN-07-M-I3-PQ2-VQ2-A

The Festo part number 532634 is an inline industrial component featuring a straight design with a 14.5 mm width dimension and a 0.7 mm Laval nozzle nominal width, operating with compressed air as per ISO 8573-1:2010 [7:4:4] across an operating pressure range of 1 bar to 8 bar. This unit provides high negative pressure and an integrated pneumatic ejector pulse valve, delivering a maximum vacuum of 93% and a maximum suction rate of 16.6 l/min at atmospheric conditions. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 532634
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 532634.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Nominal width of Laval nozzle: 0.7 mm
Width dimension: 14.5 mm
Mounting position: Any
Ejector characteristics: Inline | High negative pressure
Integrated function: Ejector pulse valve, pneumatic
Structural design: Straight design
Operating pressure for max. suction rate: 2 bar
Operating pressure: 1 bar...8 bar
Operating pressure for max. vacuum: 4.3 bar
Max. vacuum: 93 %
Nominal operating pressure: 6 bar
Max. suction rate with respect to atmosphere: 16.6 l/min
Air supply time at nominal operating pressure: 1.69 s
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication not possible
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Temperature of medium: 0 °C...60 °C
Cleaning advice: Soap suds
Noise level at nominal operating pressure: 75 dB(A)
Ambient temperature: 0 °C...60 °C
Product weight: 41 g
Type of mounting: In-line installation
Pneumatic connection 1: QS-6
Vacuum connection: QS-6
Material of connecting thread: Wrought aluminum alloy, anodized
Note on materials: RoHS compliant
Seals material: NBR

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 532634. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
