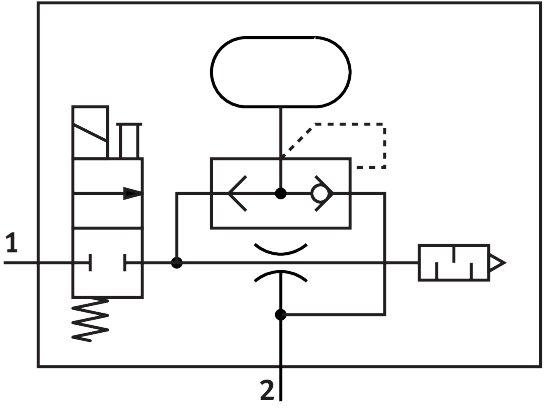

Reference imageConfirm configuration by manufacturer part number.
Festo
532649
Vacuum generator VN-14-L-T4-PQ3-VQ3-RO2-B
The Festo 532649 is an industrial component featuring a T-shape structural design with a 1.4 mm nominal width Laval nozzle and an 18 mm width dimension. This unit delivers a standard ejector characteristic with high suction volume, a maximum suction rate of 92.6 l/min at 5 bar operating pressure, and an air supply time of 0.32 s at a nominal operating pressure of 6 bar. Operating within a 2 bar to 8 bar pressure range, it incorporates an electric on-off valve, a pneumatic ejector pulse valve, a non-detenting manual override, an open muffler, and a 2/2 valve function consuming 1.2 W at 21.6 V to 26.4 V DC with a 100% duty cycle. It requires compressed air as per ISO 8573-1:2010 [7:4:4] without oil lubrication and operates in any mounting position under CRC 1 low corrosion stress conditions. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 532649
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 532649.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width of Laval nozzle
- 1.4 mm
- Width dimension
- 18 mm
- Muffler construction type
- Open
- Mounting position
- Any
- Ejector characteristics
- Standard | High suction volume
- Manual override
- Non-detenting
- Integrated function
- Ejector pulse valve, pneumatic | Electric on-off valve | Muffler open
- Structural design
- T-shape
- Valve function
- 2/2
- Operating pressure for max. suction rate
- 5 bar
- Operating pressure
- 2 bar...8 bar
- Nominal operating pressure
- 6 bar
- Max. suction rate with respect to atmosphere
- 92.6 l/min
- Air supply time at nominal operating pressure
- 0.32 s
- DC operating voltage range
- 21.6 V...26.4 V
- Electrical power consumption
- 1.2 W
- Duty cycle
- 100%
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Temperature of medium
- 0 °C...50 °C
- Noise level at nominal operating pressure
- 69 dB(A)
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...50 °C
- Product weight
- 100 g
- Electrical connection
- Plug
- Type of mounting
- With through-hole | With DIN rail | With accessories
