Festo
532694

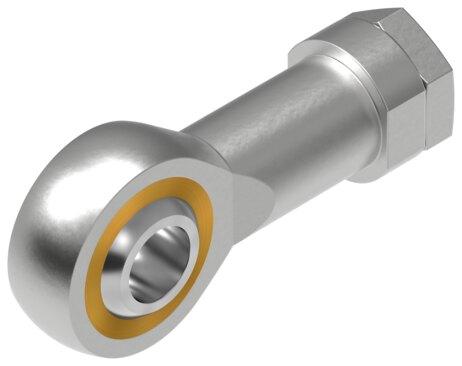

Rod eye SGS-10-32
This Festo industrial component, part number 532694, features a 10-32 UNF-2B size with a product weight of 21 g or 0.74 oz. The assembly includes a brass outer ring, a galvanized steel housing and nut, and an inner raceway constructed from steel. It operates within an ambient temperature range of -40 °C to 150 °C, possesses a corrosion resistance class (CRC) of 1 for low corrosion stress, complies with VDMA24364-B2-L LABS (PWIS) conformity, and meets RoHS material requirements. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 532694
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 532694.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 10-32 UNF-2B
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -40 °C...150 °C
- Product weight
- 21 g | 0.74 oz
- Note on materials
- RoHS compliant
- Material of outer ring
- Brass
- Housing material
- Steel, galvanized
- Inner raceway material
- Steel
- Nut material
- Steel, galvanized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 532694. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
