Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

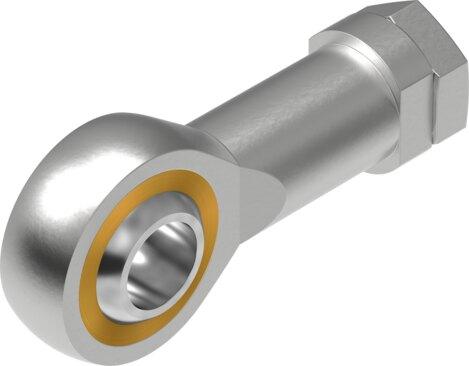

Reference imageConfirm configuration by manufacturer part number.
Festo
532698
Rod eye SGS-5/8-18
This Festo industrial component, part number 532698, features a 5/8-18 UNF-2B size with a brass outer ring, galvanized steel housing, steel inner raceway, and a galvanized steel nut. The unit has a product weight of 259 g (9.13 oz), a corrosion resistance class (CRC) of 1 for low corrosion stress, and VDMA24364-B2-L LABS conformity while complying with RoHS material standards. Operating within an ambient temperature range of -40 °C to 150 °C, the assembly meets specific structural and thermal requirements. Submit part number 532698, quantity, and application requirements to request a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 532698
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 532698.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 5/8-18 UNF-2B
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -40 °C...150 °C
- Product weight
- 259 g | 9.13 oz
- Note on materials
- RoHS compliant
- Material of outer ring
- Brass
- Housing material
- Steel, galvanized
- Inner raceway material
- Steel
- Nut material
- Steel, galvanized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 532698. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
