Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
532709

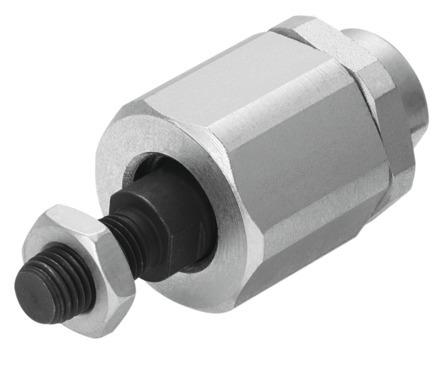

Self-aligning rod coupler FK-1-12
The Festo industrial component, part number 532709, features a 1-12 UNF-2B size with a product weight of 2142 g and a CRC rating of 2 for moderate corrosion stress. Constructed with a galvanized steel housing, galvanized steel bushing, galvanized steel nut, case-hardened steel ball pin, and case-hardened steel spherical washer, this RoHS-compliant assembly conforms to VDMA24364-B2-L LABS standards and operates within an ambient temperature range of -40 °C to 150 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 532709
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 532709.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 1-12 UNF-2B
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -40 °C...150 °C
- Product weight
- 2142 g
- Note on materials
- RoHS compliant
- Bushing material
- Galvanized steel
- Housing material
- Steel, galvanized
- Ball pin material
- Case-hardened steel
- Spherical washer material
- Case-hardened steel
- Nut material
- Steel, galvanized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 532709. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
