Festo
532909

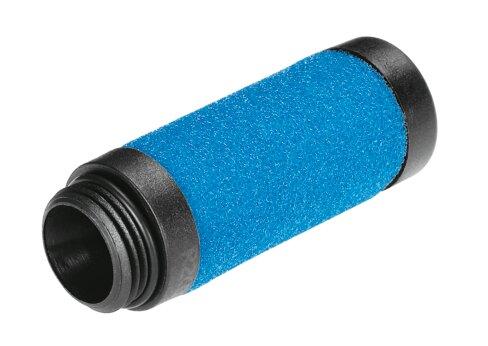

Micro filter cartridge MS6-LFM-A
The Festo 532909 is an industrial component from the MS series, size 6, built in accordance with ISO 12500-1 and ISO 12500-3 norms for compressed air and inert gases. It features a 0.01 µm grade of filtration, a residual oil content of 0.01 mg/m³, an MPPS of 0.05 µm with a 99.95% MPPS filter efficiency, and a fractional efficiency of 99.995% for 0.1 to 0.5 µm particles. Operating with a maximum standard flow rate of 900 l/min and a minimum standard flow rate of 135 l/min, it delivers an output air quality class of ISO 8573-1:2010 [3:-:2] from an input medium of ISO 8573-1:2010 [6:-:4] while conforming to VDMA24364-B1/B2-L LABS (PWIS). Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 532909
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 532909.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 6
- Based on norm
- ISO 12500-1 | ISO 12500-3
- Series
- MS
- Grade of ltration
- 0.01 µm
- Max. standard ow rate for air quality class
- 900 l/min
- Min. standard ow rate for air quality class
- 135 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [6:-:4] | Inert gases
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [3:-:2]
- Fractional efficiency (0.1 - 0.5 µm)
- 99.995 %
- MPPS
- 0.05 µm
- MPPS lter efficiency
- 99.95 %
- Residual oil content
- 0.01 mg/m³
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 532909. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
