Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

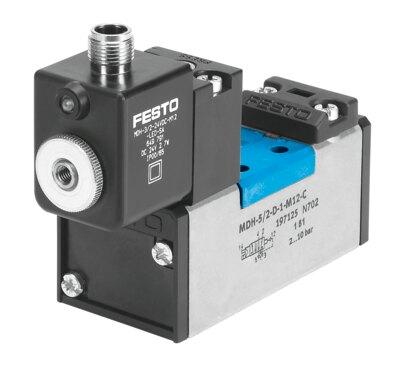

Reference imageConfirm configuration by manufacturer part number.
Festo
533011
Air solenoid valve MDH-5/2-D-2-FR-M12-C
The Festo 533011 is a 5/2-way monostable industrial component featuring a piloted piston gate valve design with a 54 mm width, an 11.5 mm nominal width, and a normal nominal flow rate of 2300 l/min normalized to DIN 1343. Operating on 24V DC within a 3 bar to 10 bar pressure range, this IP65-rated unit utilizes soft sealing, internal pilot air supply, an adjustable exhaust air function, and a mechanical spring reset alongside a non-detenting manual override. Pneumatic connections are made via a G3/8 sub-base in size 2 conforming to ISO 5599-1, supporting any mounting position and ISO code 252. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 533011
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 533011.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Width
- 54 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 2300 l/min
- Pneumatic working port
- Sub-base, size 2 according to ISO 5599-1 | G3/8
- Operating voltage
- 24V DC
- Operating pressure
- 3 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Degree of protection
- IP65
- Nominal width
- 11.5 mm
- Width dimension
- 56 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-1
- Manual override
- Non-detenting
- ISO code
- 252
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Switching time off
- 60 ms
- On switching time
- 25 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 3800 µs
- Max. negative test pulse on 1 signal
- 4900 µs
- Coil characteristics
- 24 V DC: 2.7 W
- Permissible voltage uctuations
- +/- 10%
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 533011. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
